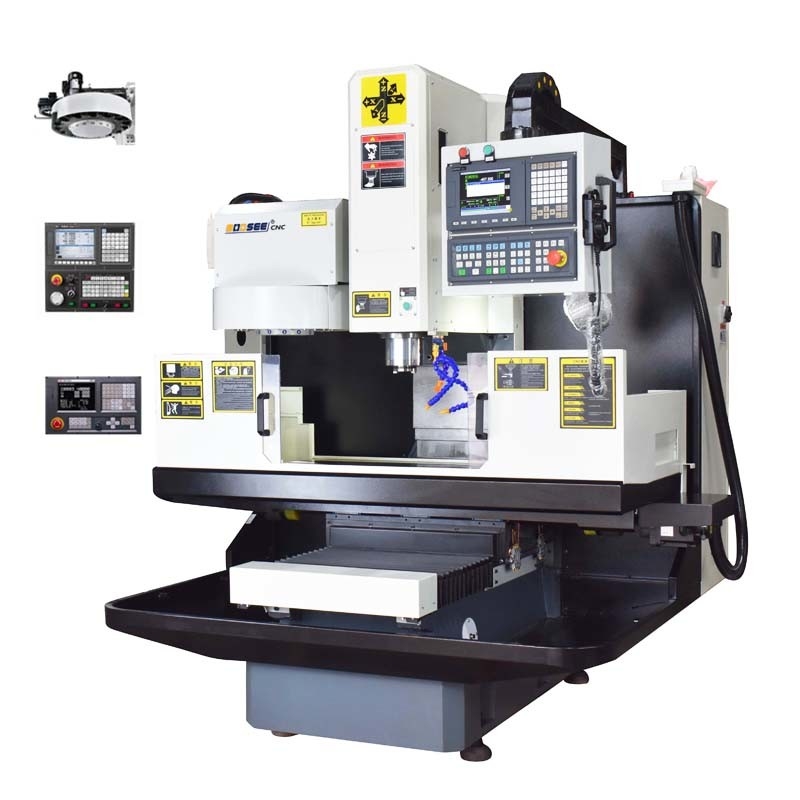

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision
large.img.alt
BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision

Large Image :  BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision

Description
The Width Of The Triaxial Linear Guide: 35mm X Rapid Feed: 36m/min
The Number Of The Slider In The X Axis: 6 Pieces Repeat Positioning Accuracy: 0.008mm
Feed Axis Motor Power: 1.8/1.8/2.5KW Feed Motor Connection Form: Direct Connection
High Light:

BT40 Spindle CNC Automatic Machine

,

High Precision CNC Automatic Machine

,

BT40 Spindle Industrial CNC Machine

Automatic CNC Machine BT40 Spindle 400KG Max Load High Precision CNC Milling Machine Axis Industrial



Product Description:

CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. The efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.





Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

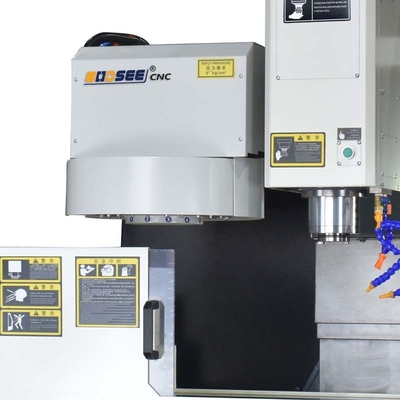

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 0





Product Features:

1. It adopts special casting process to improve the mechanical properties of materials.

2. It has good thermal stability and stabilization precision.

3. Large travel: larger travels in all three directions than those of the same specifications in the market.

4. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.

5. The machine tool circuit and CNC control part are highly integrated, which greatly reduces the failure rate, with neat wiring and reasonable structures.





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 1

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 2





Workpiece sample:

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 3

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 4





Our Exhibition:

BT40 Spindle Industrial CNC Automatic Machine 400KG Max Load High Precision 5





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
