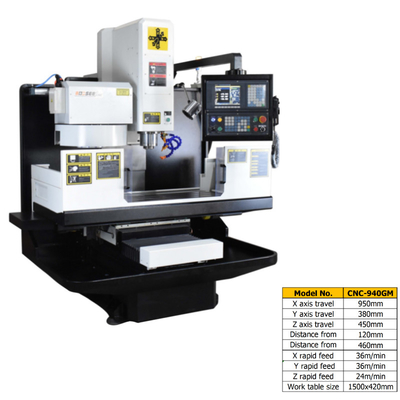

Z Axis Travel 450mm 3 Axis CNC Machining Center

Z Axis Travel 450mm 3 Axis CNC Machining Center
Z Axis Travel 450mm 3 Axis CNC Machining Center Z Axis Travel 450mm 3 Axis CNC Machining Center

Large Image :  Z Axis Travel 450mm 3 Axis CNC Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Z Axis Travel 450mm 3 Axis CNC Machining Center

Description
Z Axis Travel: 450mm Distance From Spindle Nose To The Work Table: 120mm
The Width Of The Triaxial Linear Guide: 35mm The Maximum Load Capacity: 400KG
Main Servo Motor Rated Power: 3.7kw
High Light:

450mm 3 Axis CNC Machining Center

,

3.7kw 3 Axis CNC Machining Center

Heavy Cutting Has Strong Rigidity Cnc Machine Center 3 Axis Cnc Milling Machine Vertical CNC Machine



Product Features:

1. It has good thermal stability and stabilization precision.

2. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process.

3. The machine tool circuit and CNC control part are highly integrated, which greatly reduces the failure rate, with neat wiring and reasonable structures. The electric cabinet is equipped with heat sink device.



Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed



Z Axis Travel 450mm 3 Axis CNC Machining Center 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Z Axis Travel 450mm 3 Axis CNC Machining Center 1

Z Axis Travel 450mm 3 Axis CNC Machining Center 2



Workpiece Sample:

Z Axis Travel 450mm 3 Axis CNC Machining Center 3





Z Axis Travel 450mm 3 Axis CNC Machining Center 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.

3. What's the MOQ?

MOQ is 1 set.

4. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
