Product Details
Place of Origin: Shenzhen China
Brand Name: Lishang Precision Machinery
Certification: CE ISO
Model Number: LS-8050
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: durable case
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500/month
Brand: |
Lishang |
Type: |
Gantry Machine Center |
Axis: |
X/Y/Z |
X/Y/Z Three-axis Travel: |
800/500/500mm |
Size: |
1050*500mm |
Distance From Spindle Nose To Worktable: |
130-630mm |
Spindle Taper: |
BT40 |
Tool Weight: |
7kg |
Tool Length: |
250mm |
Name: |
Vertical Machining Center |
Brand: |
Lishang |
Type: |
Gantry Machine Center |
Axis: |
X/Y/Z |
X/Y/Z Three-axis Travel: |
800/500/500mm |
Size: |
1050*500mm |
Distance From Spindle Nose To Worktable: |
130-630mm |
Spindle Taper: |
BT40 |
Tool Weight: |
7kg |
Tool Length: |
250mm |
Name: |
Vertical Machining Center |

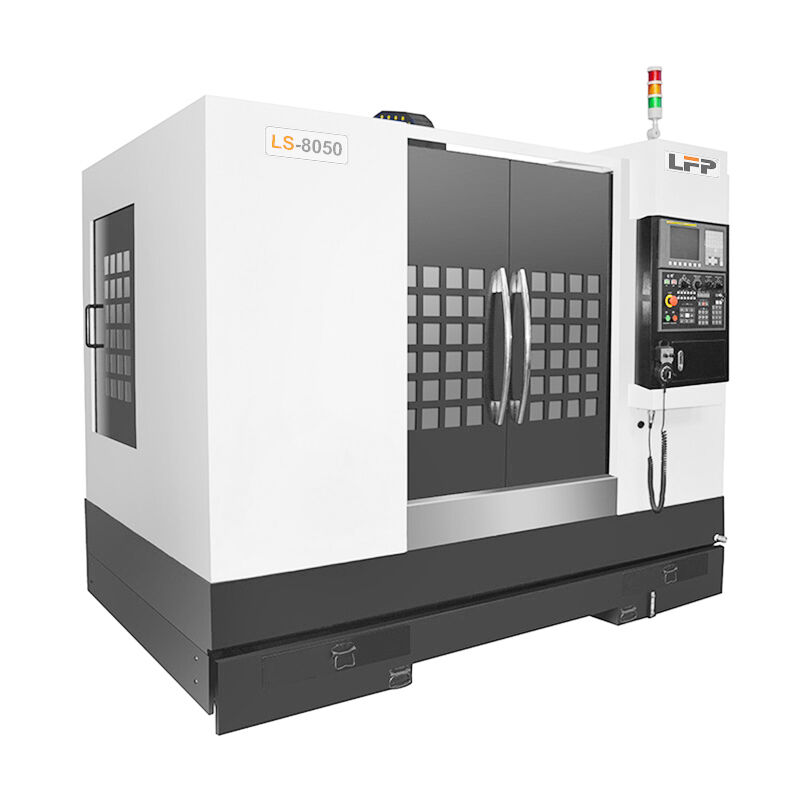

Customized high quality CNC model LS-8050 Hard rail machining X800Y500Z500 small Precision applicable
LS-8050 is a CNC machining center suitable for small batch processing of complex parts. LS-8050 adopts a hard rail structure, which can reduce the impact of vibration during cutting, and is equipped with 24 different cutters. Different knife types can be selected according to user needs to meet the diverse needs of users.
Product specification
| Name | Unit | LS-8050 |
| Size | mm | 1050*500 |
| X/Y/Z Three-axis travel | mm | 800/500/500 |
| Distance from spindle nose to worktable | mm | 130-630 |
| Workbench T-slot (number of slots - slot width * spacing) | mm | 5-18*90 |
| Spindle speed (optional) | r/min | Belt 8000 |
| Spindle taper | / | BT40 |
| X/Y/Z Three-axis rapid movement rate | m/min | 16/16/16 |
| Tool magazine capacity (optional) | Pieces | (24) |
| Tool weight | kg | 7 |
| Tool length | mm |
250
|
Product Feature
Factory real shot:
Application
Mold manufacturing industry:The 3kw servo motor provides strong power, which can efficiently handle milling, boring and other processes in mold processing. The three-axis travel of 800500550 can also meet the processing needs of molds of different sizes, helping to create high-precision molds.
Auto parts production:The stable performance of the machining center ensures the consistency of parts, and the powerful servo motor can quickly complete the engine parts.
Aerospace:The high precision and high stability of this equipment make it competent for the processing of various precision parts in the aerospace field, such as aircraft structural parts, engine components, etc., ensuring the dimensional accuracy and performance reliability of the parts.
General machining:The three-axis travel can adapt to the processing of parts of different specifications various gears, shafts, boxes and other parts.
Troubleshooting
| Common faults | Possible case | Solved |
| Spindle overheating | cooling device issue or grease not work | Check the cooling device or change the grease |
| Inaccurate | program set correct ,the main track broken or |
Check the guide rail wear, Check and correct program parameters |
| CNC system alarm | Program error; unreasonable parameter setting; system failure | Check and modify program errors; reset reasonable parameters; |
| Poor chip removal | Too much material accumulation; chip removal motor failure | Clean up the accumulated chips; check the chip removal motor, repair or replace it |
Sales service
* Instructions for use: Online operating instructions and usage videos are available, and on-site training requires additional fees
* Online guidance: Professional engineers provide online technical guidance to quickly solve customer problems
* Provide 3-year warranty and lifetime technical support services
What's your main products of your company?
We mainly produce and sell various types of CNC machining centers, including vertical machining centers, gantry machining centers, horizontal machining centers, five-axis machining centers, profile machining centers, etc. We have our own factory to support customization and welcome factory inspections.
What is the minimum order quantity?
Minimum order is one piece but a 30% deposit is required.
What payment methods are supported?
T/T , Alibaba, Paypal, USDT, Alipay, Wechat, etc
Which type shipment way ?
About shipment that we have own deliver way like sea method or truck method .
