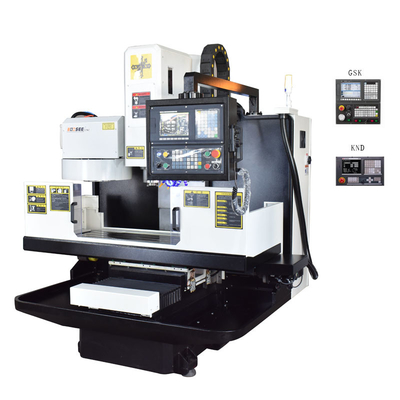

BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal

BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal
BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal

Large Image :  BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal

Description
Work Table Size: 1500x420mm X Axis Travel: 950mm
Y Axis Travel: 380mm Z Axis Travel: 450mm
Positioning Accuracy: 0.01mm Spindle Speed Range: 20-8000rpm/min
Main Servo Motor Rated Output Torque: 24Nm
High Light:

BT40 Spindle VMC Milling Machine

,

950mm VMC Milling Machine

BT40 Spindle 950mm X Axis 1500x420mm Work Table Metal Cutting VMC Milling Machine For Metal



Product Description:



CNC-940GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system.

It is suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity.

The machine is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries.

It can realize hole-machining operations such as drilling, counterboring, reaming,Boring, and tapping processing for various complex parts such as discs, plates, shells, cams, molds, etc..





Production Specification:

Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed



BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal 0



Product Features:

1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron. It adopts special casting process to improve the mechanical properties of materials. After annealing treatment and vibration aging, remove stress to ensure good rigidity and damping characteristic when the machine tool is used for cutting.

2. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.

3. The components of feed adopt precision ball screw, the axial bearing at both ends adopt leading screw special bearing and the ball screw is prestretching. The lead screw and motor are connected by a direct connection rigid coupling without clearance. The ceaseless transmission, small moment of inertia and high transmission stiffness.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal 1

BT40 Spindle VMC Milling Machine 950mm X Axis 1500x420mm Work Table For Metal 2

FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.
4. Lowest price?
We are the factory, we directly providing the lowest price with ensured after sale service.
