Product Details
Place of Origin: Shenzhen China
Brand Name: Lishang Precision Machinery
Certification: CE ISO
Model Number: LS-YL600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: durable case
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/month
Name: |
5 Axis Machining Center |
Maximum Load-bearing Capacity Of Workbench: |
50kg |
Spindle Speed: |
15000rpm |
Spindle Motor Power: |
12kw |
Rapid Shift X/Y/Z: |
24/24/32m/min |
Chip Feed Speed: |
10m/min |
Positioning Accuracy X/Y/Z: |
±0.005/300mm |
B/C Axis Positioning Accuracy: |
±8° |
B/C Axis Repeat Positioning Accuracy: |
±5° |
Machine Tool Dimensions: |
1900*2100*3300mm |
Machine Tool Weight: |
5t |
Name: |
5 Axis Machining Center |
Maximum Load-bearing Capacity Of Workbench: |
50kg |
Spindle Speed: |
15000rpm |
Spindle Motor Power: |
12kw |
Rapid Shift X/Y/Z: |
24/24/32m/min |
Chip Feed Speed: |
10m/min |
Positioning Accuracy X/Y/Z: |
±0.005/300mm |
B/C Axis Positioning Accuracy: |
±8° |
B/C Axis Repeat Positioning Accuracy: |
±5° |
Machine Tool Dimensions: |
1900*2100*3300mm |
Machine Tool Weight: |
5t |

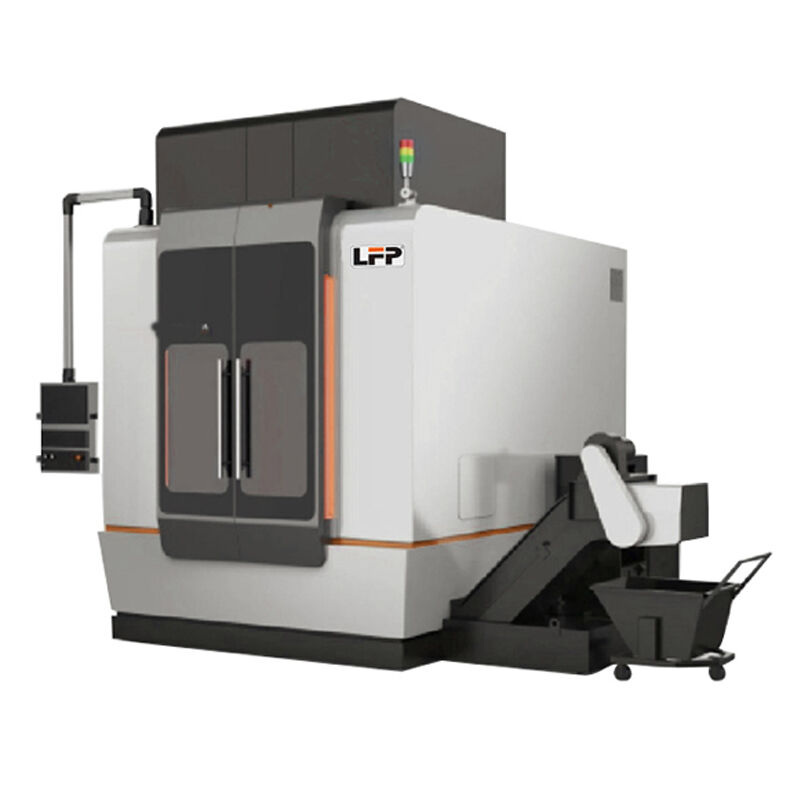

High Precision 5-Axis Machining Center with BC Cradle Rotary Table for Large Workpieces and Complex Geometries
This high-precision 5-axis gantry CNC machining center elevates efficiency and accuracy in complex part processing. Its robust BC cradle rotary table enables seamless multi-axis movement—B-axis tilting and C-axis rotation—achieving intricate geometries beyond 3-axis machines.
It features a spacious worktable for large workpieces, automatic tool changers for quick swaps, and integrated coolant systems to optimize cutting and extend tool life. Rigorous testing ensures it meets top industry standards for reliable performance.
Product specification
| LS-YL600 | LS-YL500 | LS-YL820 | LS-YL900 | |||
| Processing range | ||||||
| X-axis travel | mm | 600 | 500 | 820 | 900 | |
| Y-axis travel | mm | 400 | 450 | 520 | 900 | |
| Z-axis travel | mm | 300 | 400 | 460 | 600 | |
| Distance from spindle end to worktable | mm | 300 | 200-600 | 220-680 | 150-800 | |
| C-axis of the worktable | ||||||
| Workbench area | mm | Φ300 | Φ500 | Φ650 | Φ800 | |
| Workbench swing angle (A axis) | . | ±110° | ±120° | ±120° | -30°~+120° | |
| Workbench swing angle (C axis) | . | ±360° | ±360° | ±360° | ±360° | |
| Maximum load-bearing capacity of workbench | kg | 50 | 400 | 600 | 1200 | |
| Spindle | ||||||
| Spindle drive mode | Direct connection | Direct connection | Direct connection | Electric spindle | ||
| Spindle speed | rpm | 15000 | 12000 | 16000 | 18000 | |
| Spindle motor power | kw | 12 | 22 | 22 | 30 | |
| Spindle taper/pull stud | BT-30 | BT-40 | HSK-A63 | HSK-A63 | ||
| Drive feed | ||||||
| Rapid shift X/Y/Z | m/min | 24/24/32 | 24/24/32 | 24/24/32 | 20/16/12 | |
| Chip feed speed | m/min | 10 | 10 | 10 | 3 | |
| Minimum resolution | mm | 0.001 | 0.001 | 0.001 | 0.001 | |
| Precision | ||||||
| Positioning accuracy X/Y/Z | mm | ±0.005/300 | ±0.005/500 | ±0.005/650 | ±0.005/800 | |
| Repeat positioning accuracy X/Y/Z | mm | ±0.005/300 | ±0.005/500 | ±0.005/650 | ±0.005/800 | |
| B/C axis positioning accuracy | ±8° | ±8° | ±8° | ±8° | ||
| B/C axis repeat positioning accuracy | ±5° | ±5° | ±5° | ±5° | ||
| Other | ||||||
| Guide rail specifications | mm | 28/28/28 | 45/35/35 | 45/45/55 | 35/45/45 | |
| Screw rod specifications | mm | 40/40/50 | 40/36/36 | 45/45/45 | 40/40/40 | |
| Tool magazine specifications/capacity | Bundle | BT-30/21T | BT-40/24T | HSK-A63/24T | HSK-A63/30T | |
| Power requirements | kw | 18 | 25 | 45 | 60 | |
| Machine tool dimensions | mm | 1900*2100*3300 | 2942*2846*2807 | 3950*3850*3200 | 5200*4300*3900 | |
| Machine tool weight (approx.) | t | 5 | 6.5 | 8.5 | 15 | |
Product Feature
Application
It can be applied to industries such as aerospace, automobile, mold and medical device manufacturing.
