Product Details:
|
| Work Table Size: | 1500x420mm | The Width Of Grooves: | 18mm |
|---|---|---|---|
| Positioning Accuracy: | 0.01mm | Spindle Speed Range: | 20-8000rpm/min |
| Tool Changer: | Carousel Tool Changer | Dimension Of Machine Tool: | 1950x1700x2300 Mm |
| High Light: | High Rigidity CNC VMC Machine,Three Axis CNC VMC Machine,XYZ Axis CNC Machine |
||

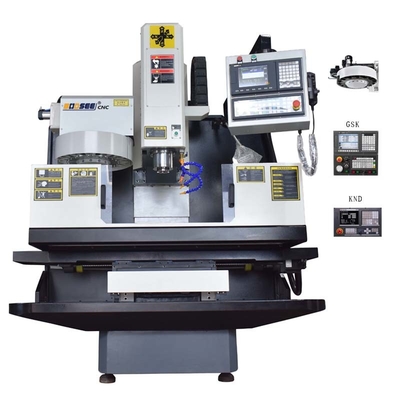

High Rigidity CNC VMC Machine Center With X Y And Z Three Axis 400KG Max Load
Product Description:
CNC-950GM CNC Vertical Machining is the world's highest yield, the most widely used one of the CNC machine tools.
The efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.
1. The overall framework is made of high toughness and high grade casting iron.
2. The long span Y type column design leads high rigidity and high stability.
3. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability
4. Leveling blocks & bolts;
5. Toolbox and tools.
Product Specification:
| Model No. | CNC-950GM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12pieces | |
| Dimension of machine tool | 1950/1700/2300mm | |
| Weight of machine | 2250KG | |
