|X Axis Travel:||900mm||The Number Of The Slider In The X Axis:||6 Pieces|
|Work Table Size:||1500x420mm||The Number Of Grooves:||4pieces|
|Spindle Speed Range:||20-8000rpm/min|
BT40 Spindle High Speed Machining Center,
Industrial High Speed Machining Center,
High Rigidity CNC Machining Equipment

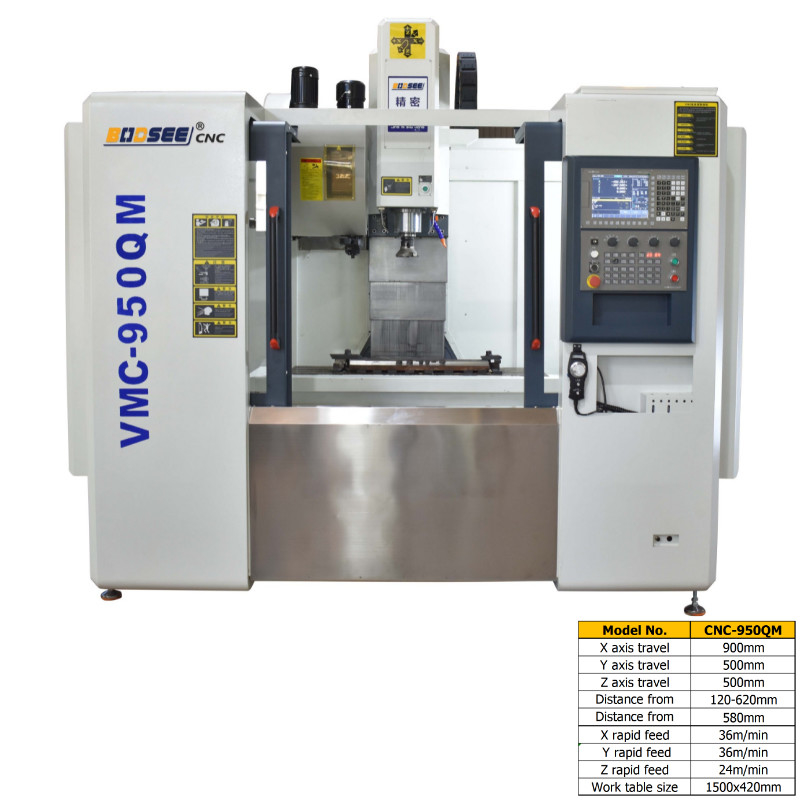

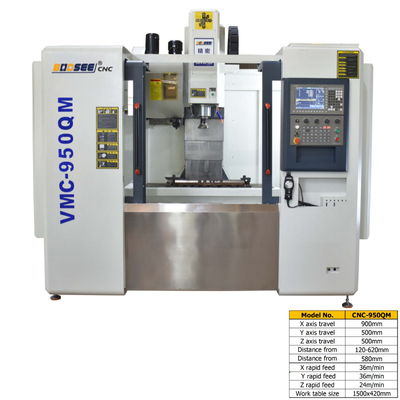

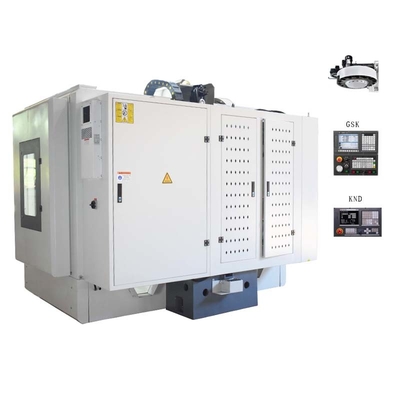

Industrial Cnc Machining Equipment High Rigidity BT40 Spindle High Speed Machining Center
1. The tool magazine adopts a manipulator to change tools, the tool magazine capacity is 24 tools, and the tool change time is fast.
2. Drive: The three-axis motor and the high-precision ball screw are directly connected and driven.
3. The ball screw is pre-stretched to further improve the transmission rigidity and positioning accuracy.
|X axis travel||900mm|
|Y axis travel||500mm|
|Z axis travel||500mm|
|Distance from spindle nose to the work table||120-620mm|
|Distance from spindle center to column guideway||580mm|
|X rapid feed||36m/min|
|Y rapid feed||36m/min|
|Z rapid feed||24m/min|
|Cutting rapid feed||8000mm/min|
|The width of the triaxial linear guide||35mm|
|The number of the slider in the X axis||6 pieces|
|The number of the slider in the Y axis||4 pieces|
|The number of the slider in the Z axis||4 pieces|
|Triaxial screw size||40/12mm|
|Work table size||1500x420mm|
|The maximum load capacity||400KG|
|Table "T" type groove||The number of grooves||4pieces|
|Repeat positioning accuracy||0.008mm|
|Spindle speed range||20-8000rpm/min|
|Feed axis motor power||1.8/1.8/2.5KW|
|Feed motor connection form||Direct Connection|
|Taper of spindle hole||BT40|
|The spindle of output power||5.5/7.5KW|
|Cooling box form||Independent|
|Tool Changer||Carousel tool changer /
Side-mount tool changer
|Dimension of machine tool||2800*2200*2300mm|
|Weight of machine||3150KG|
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
