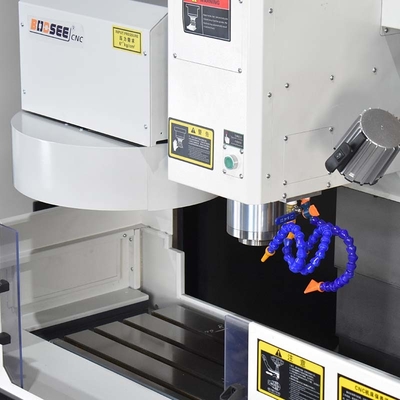

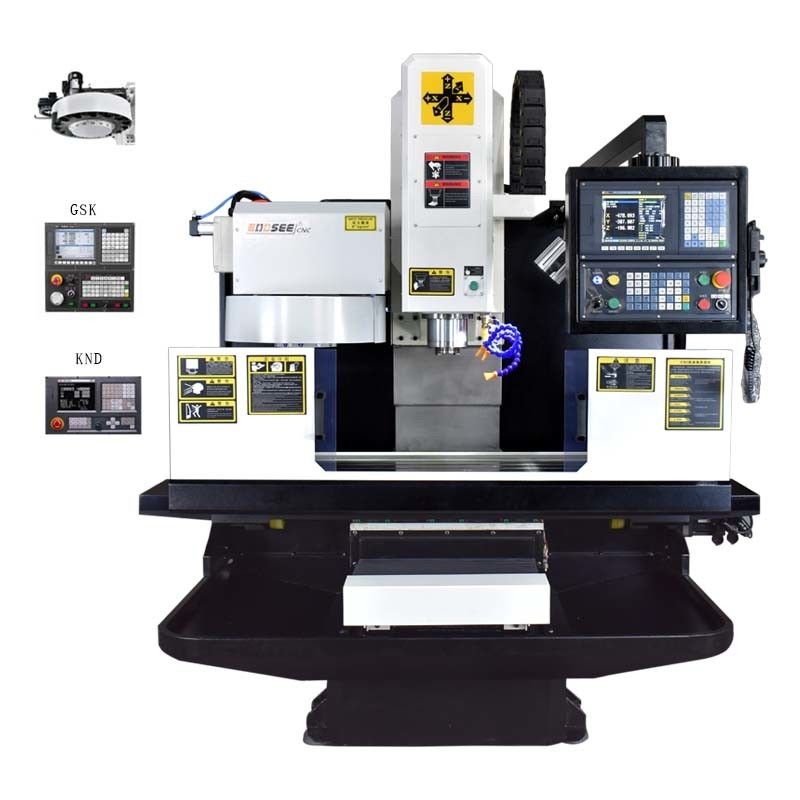

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System
large.img.alt
BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System

Large Image :  BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System

Description
Work Table Size: 1500x420mm Positioning Accuracy: 0.01mm
Spindle Speed Range: 20-8000rpm/min Main Servo Motor Rated Output Torque: 24Nm
Distance From Spindle Nose To The Work Table: 120mm Distance From Spindle Center To Column Guideway: 460mm
Cutting Rapid Feed: 0-8000mm/min The Maximum Load Capacity: 400KG
High Light:

BT40 Spindle VMC CNC Milling Machine

,

Sinumerik VMC CNC Milling Machine

CNC milling machine BT40 spindle with FANUC/ Sinumerik / Mitsubishi system VMC Milling Machine For Metal



Product Description:



CNC-940GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system.

It is suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity.

The machine is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries.

It can realize hole-machining operations such as drilling, counterboring, reaming,Boring, and tapping processing for various complex parts such as discs, plates, shells, cams, molds, etc..





Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System 0





Product Features:

1. High speed, high precision, good surface finishing

2. Made of high-density, high rigidity material, high strength and good wear resistance

3. Precision casting, precision machining, precision assembly

4. Standard automatic lubrication system to extend the service life of the guide rail



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System 1

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System 2

Workpiece Sample:

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System 3

BT40 Spindle VMC CNC Milling Machine With FANUC/ Sinumerik / Mitsubishi System 4





FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.
4. What's your main products of your company?

We specialized in CNC Milling Machine ,Vertical Machining Center.



Thank you for your precious time!
