Product Details
Place of Origin: Shenzhen China
Brand Name: Lishang Precision Machinery
Certification: CE ISO
Model Number: LS-1200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: durable case
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/month
Name: |
Drilling And Milling Machining Center |
Table Size: |
1300*600mm |
X/Y/Z Three-axis Travel: |
1200/650/410（21T）mm |
Distance From Spindle Nose To Table: |
150~560（21T）mm |
T-slot Of Table: |
5-18*125mm |
Spindle Speed (optional): |
20-20000(12000) R/min |
Spindle Taper: |
BT30 |
X/Y/Z Three-axis Rapid Movement: |
36/36/36m/min |
Tool Magazine Capacity (optional): |
21（26）Bundle |
Tool Weight: |
3kg |
Tool Length: |
200mm |
Name: |
Drilling And Milling Machining Center |
Table Size: |
1300*600mm |
X/Y/Z Three-axis Travel: |
1200/650/410（21T）mm |
Distance From Spindle Nose To Table: |
150~560（21T）mm |
T-slot Of Table: |
5-18*125mm |
Spindle Speed (optional): |
20-20000(12000) R/min |
Spindle Taper: |
BT30 |
X/Y/Z Three-axis Rapid Movement: |
36/36/36m/min |
Tool Magazine Capacity (optional): |
21（26）Bundle |
Tool Weight: |
3kg |
Tool Length: |
200mm |

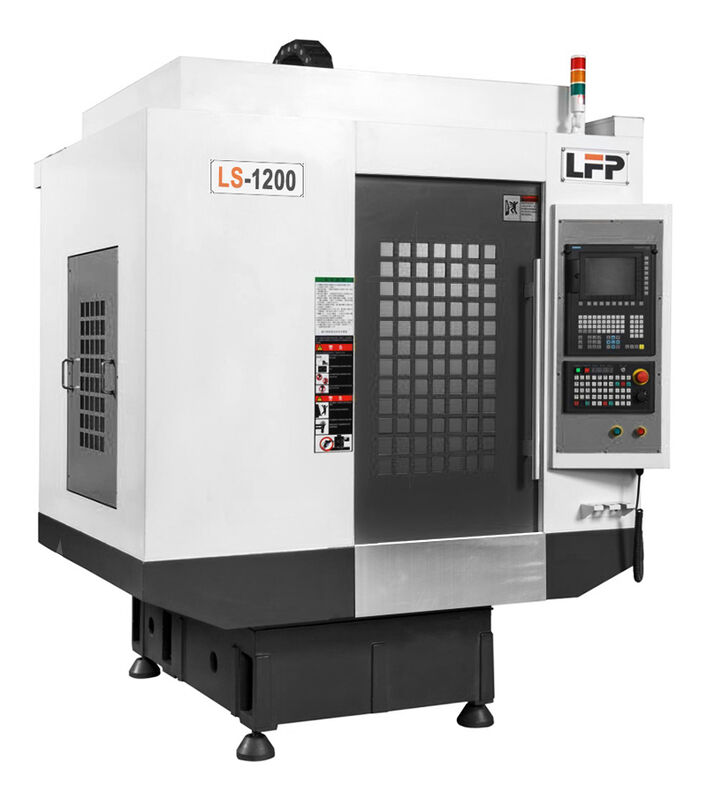

LS-1200 High Rigidity Drilling And Milling Machining Center With Chip Wash System For Stable And Processing
Lishang Precision LS-1200 drilling and milling center: high rigidity, stability, easy operability, excellent performance. High-speed spindle: fast response, long life, ensures stable, efficient processing. Heavy-duty base lowers center of gravity, resists torsional vibration, shifts cutting vibration to non-cutting area for better stability.
Standard high-power water pump and taper shank cleaning: quickly flushes chips, accelerates cutting fluid return, fits 5G industry needs. PLC-optimized tool change: faster, stable, cuts non-processing time, boosts efficiency.It is suitable for precision processing and 5G needs—reliable, convenient, a production asset.
Product specification
| Item | Unit | LS-1200 | ||
| Table size | mm | 1300*600 | ||
| X/Y/Z three-axis travel | mm | 1200/650/410(21T) | 1200/650/400(26T) | |
| Distance from spindle nose to table | mm | 150~560(21T) | 155~550(26T) | |
| T-slot of table (number of slots - slot width * width between slots) | mm | 5-18*125 | ||
| Spindle speed (optional) | r/min | 20-20000(12000) | ||
| Spindle taper | / | BT30 | ||
| X/Y/Z three-axis rapid movement | m/min | 36/36/36 | ||
| Tool magazine capacity (optional) | Bundle | 21(26) | ||
| Tool weight | kg | 3 | ||
| Tool length | mm | 200 | ||
Product Feature
1. High-speed spindle with fast response, long life and stable processing.
2. Heavy-duty base lowers the center of gravity, resists torsion and dampens vibration, and moves cutting vibration to the non-cutting area.
3. Standard high-power water pump and taper shank cleaning, quickly flush chips and accelerate cutting fluid reflux, in line with the needs of the 5G industry.
4. PLC optimizes tool change, shortens time and is fast and stable, reduces non-processing time, and improves efficiency.
Application
It is mainly used in the efficient processing of cavities, frames, plates, discs and shells of small and medium-sized base station communication boxes, radiators, filters, vehicle terminals, smart door locks, tablet computers and other general industries.
