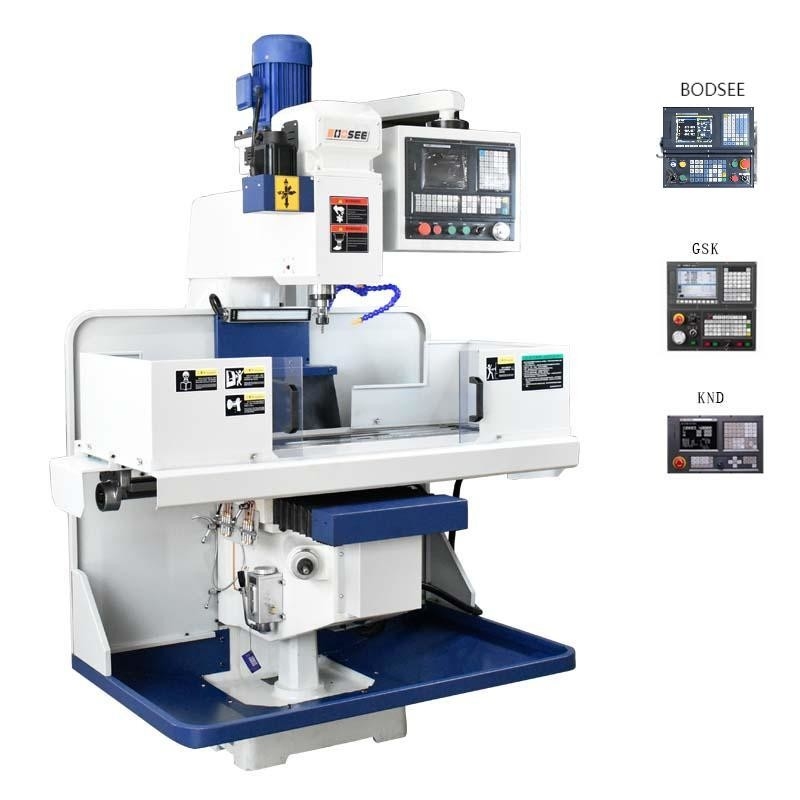

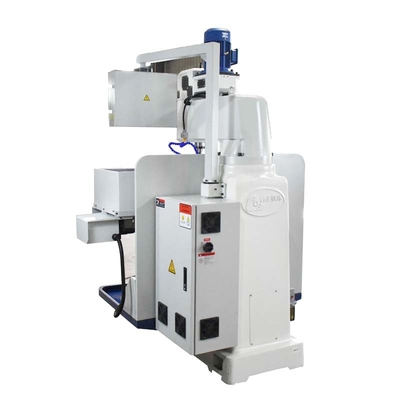

830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center

830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center
830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center
830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center 830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center 830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center

Large Image :  830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center

Description
Taper Of Spindle Hole: R8(NT30) Spindle Diameter: Φ85.725mm
Cutting Rapid Feed: 1~4000mm/min Dimension Of Machine Tool: 1500x1820x2380 Mm
Triaxial Feed Motor Torque: 6/6/4Nm Electric Capacity: 7KVA
Weight Of Machine: 1700kg
High Light:

830mm Vertical CNC Machine

,

Precision 830mm Vertical CNC Machine

,

830mm Vertical CNC Machine Center

830mm X Axis 120+360 Mm Worktable Travel Long Worktable Precision CNC Machining Center



Product Features:

1. High speed, high precision, good surface finishing

2. Made of high-density, high rigidity material, high strength and good wear resistance

3. Precision casting, precision machining, precision assembly





Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg





830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center 0



Product description:

The product is a vertical CNC milling machine with X, Y and Z axis servo control.

The rectangular guideway has large load, high rigidity and compacted in design.

It is suitable for the production of multiple varieties, small and medium-sized batch of products, and can meet the processing of complex, high-precision parts in batches.





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel

830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center 1

830mm X Axis Vertical CNC Machine Precision CNC Milling Machining Center 2





FAQ:

1. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

6. What is your lead time?

It depends on customers’ requirement and quantity.
