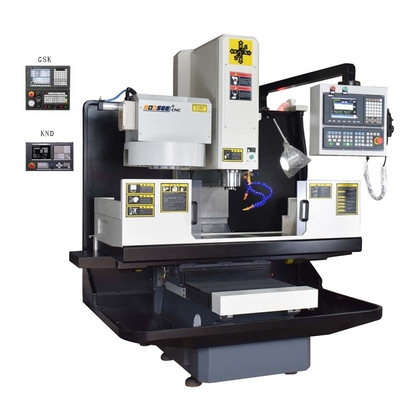

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table
large.img.alt
High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table

Large Image :  High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table

Description
Z Axis Travel: 500mm Distance From Spindle Center To Column Guideway: 580mm
Cutting Rapid Feed: 8000mm/min Work Table Size: 1500x420mm
The Number Of Grooves: 4pieces The Spacing Of Grooves: 90mm
High Light:

VMC 3 Axis CNC Vertical Milling Machine

,

High Speed 3 Axis CNC Vertical Milling Machine

High Speed VMC Machine Long Work Table 1500x420mm 3 Axis CNC Milling Machine 400Kg Load



Product Description:

CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. CNC machines are making parts around the world for almost every industry. They create things out of plastics, metals, aluminum, wood and many other hard materials.





Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

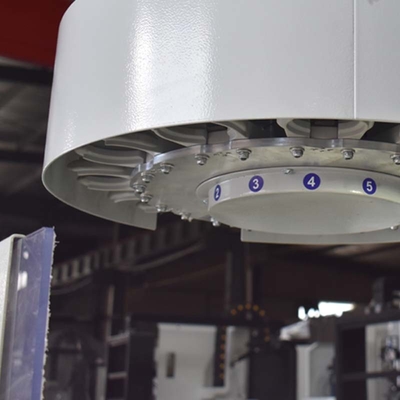

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table 0





Product Features:

1. Linear guide system for rapid feeds up to 36 m/min.

2. 12/24T arm-type ATC tool changer for quick and precise tool changes (as Optional).

3. Different Operating system as optional: Siemens, Fanuc, Mitsubishi.

4. Pneumatic parts, electrical parts, operating parts, spindle, rail and screw are all of the brand -name parts.





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table 1

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table 2





Workpiece sample:

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table 3





Our Exhibition:

High Speed VMC 3 Axis CNC Vertical Milling Machine 1500x420mm Long Work Table 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
