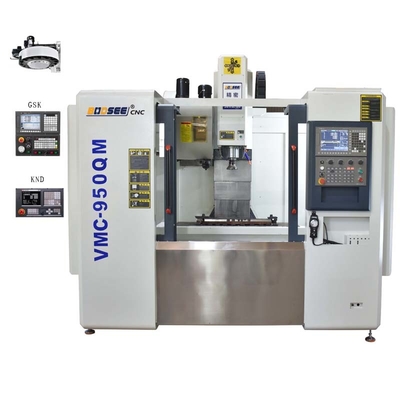

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table
large.img.alt
BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table

Large Image :  BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table

Description
Y Axis Travel: 500mm The Width Of The Triaxial Linear Guide: 35mm
Work Table Size: 1500x420mm Positioning Accuracy: 0.01mm
The Spindle Of Output Power: 5.5/7.5KW Tool Capacity: 12-24pieces
High Light:

BT40 High Speed CNC Lathe

,

500mm High Speed CNC Lathe

,

VMC High Speed CNC Machine

High Speed VMC Machine Long Work Table 1500x420mm CNC Machining Center BT40



Product Description:

CNC VMC is composed of mechanical equipment and numerical control system. The VMC is suitable for mechanical processing and mold making. It can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.



Product Specification:

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 0

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 1





Product Features:

1. Linear guide system for rapid feeds up to 36 m/min.

2. High-precision preloaded ball screws on all 3 axes,4 and 5 axes are optional.

3. Easy accessibility of work table for easy setup and tooling.

4. Enclosed work space ensures safe and contamination-free work.

5. Large travel: larger travels in all three directions than those of the same specifications in the market.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 2

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 3





Workpiece Sample:

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 4





Our Exhibition:

BT40 VMC High Speed CNC Machine 500mm Y Axis Travel 500x420mm Long Work Table 5





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
