|The Width Of The Triaxial Linear Guide:||35mm||Triaxial Screw Size:||40/12mm|
|The Maximum Load Capacity:||400KG||Machine Tool Electric Gross Capacity:||10KVA|
Automated High Speed VMC Machine,
Milling High Speed VMC Machine,
BT40 Automated CNC Machine

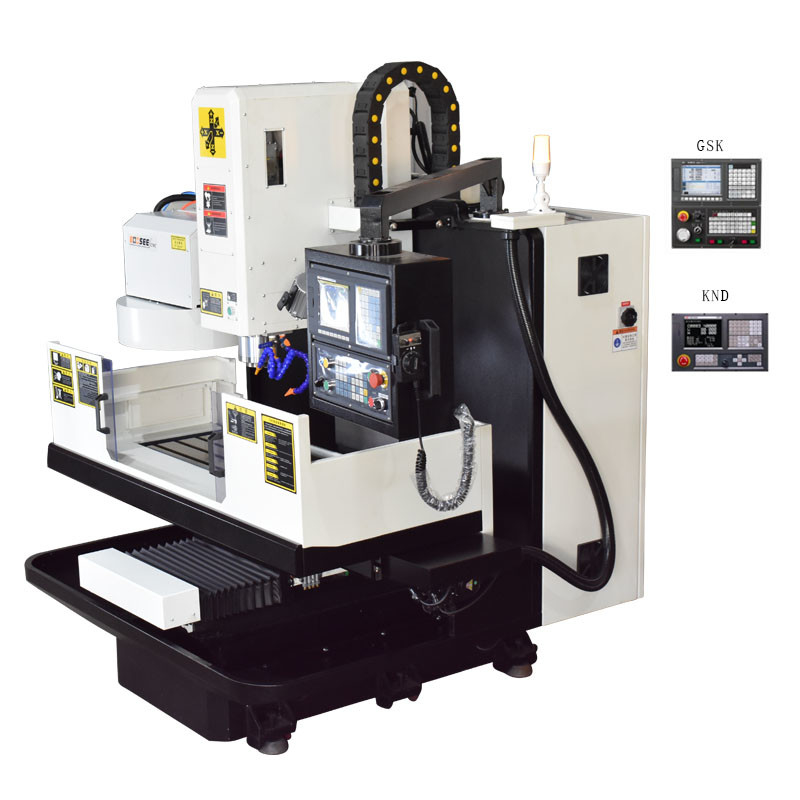

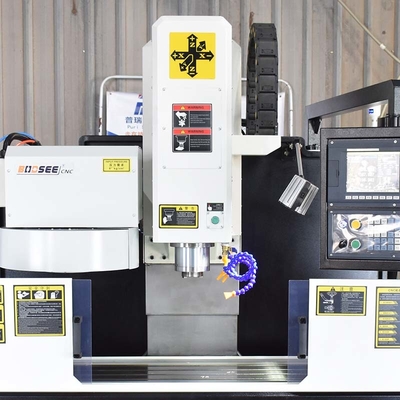

Automated High Speed VMC Machine BT40 CNC Milling Machine 400KG Max Load
1. CNC machining center: the characteristics of heavy cutting, excellent rigidity and excellent production efficiency.
2. The CNA-940GM CNC Machine adopts special casting process to improve the mechanical properties of materials.
3. BT40 Spindle
4. High speed and high precision
5. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.
|X axis travel||950mm|
|Y axis travel||380mm|
|Z axis travel||450mm|
|Distance from spindle nose to the work table||120mm|
|Distance from spindle center to column guideway||460mm|
|X rapid feed||36m/min|
|Y rapid feed||36m/min|
|Z rapid feed||24m/min|
|X/Y axis feed motor rated power||1.6/2.0kw|
|X/Y axis feed motor rated output torque||7.7-8.4Nm|
|Z axis feed motor rated power||2.6kw|
|Z axis feed motor rated output torque||10Nm|
|Cutting rapid feed||0-8000mm/min|
|The width of the triaxial linear guide||35mm|
|The number of the slider in the X axis||6 pieces|
|The number of the slider in the Y axis||4 pieces|
|The number of the slider in the Z axis||4 pieces|
|Triaxial screw size||40/12mm|
|Work table size||1500x420mm|
|The maximum load capacity||400KG|
|Table "T" type groove||The number of grooves||4pieces|
|Repeat positioning accuracy||0.008mm|
|Spindle speed range||20-8000rpm/min|
|Main servo motor rated power||3.7kw|
|Main servo motor 30 minute locked-rotor power||5.5kw|
|Main servo motor rated output torque||24Nm|
|Spindle sssembly dynamic balance mode||G1|
|Feed motor connection form||Direct connection|
|Taper of spindle hole||BT40|
|Tool changer||Carousel tool changer|
|Max tool diameter (Full)||Ф75mm|
|Max tool weight||7kg|
|Max tool length||300mm|
|Cutting Tool Selection Mode||Forward and reverse arbitrary tool selection|
|Machine tool electric gross capacity||10KVA|
|Dimension of machine tool||1950x1600x2000 mm|
|Weight of machine||1950KG|
|Machine protection shield||Half Cover/Semi enclosed|
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
3. OEM Service
We accept purchase orders with customers' brand or trade mark.
4. Is your company a factory or trading company ?
We are factory and located in Zhangzhou City, Fujian Province, China.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
