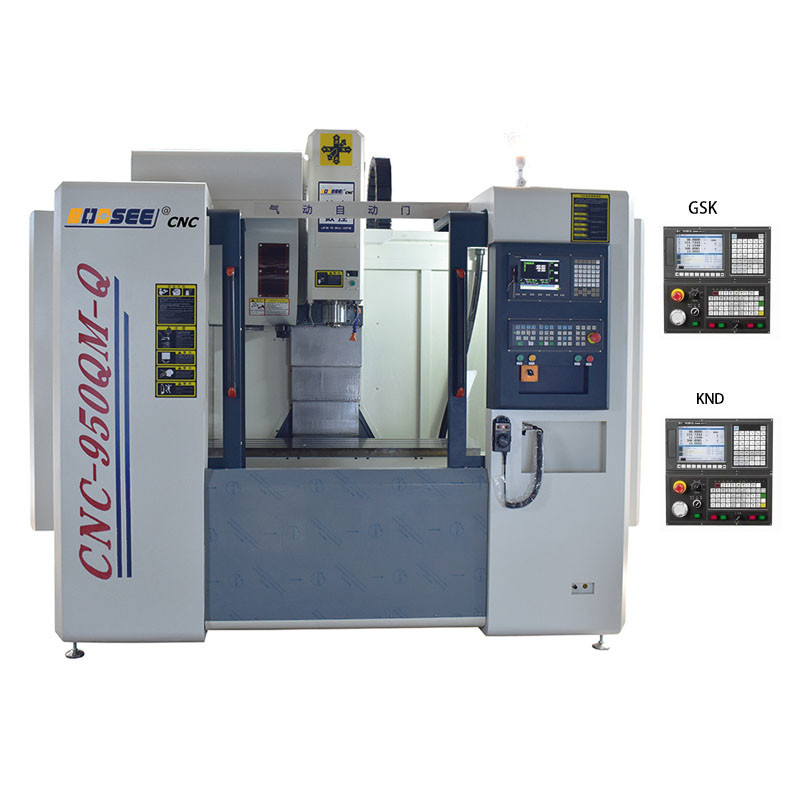

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center

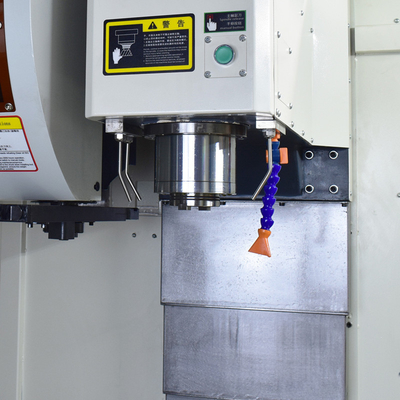

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center
900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center
900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center

Large Image :  900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM-Q
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center

Description
Positioning Accuracy: 0.01mm Taper Of Spindle Hole: BT40
Cooling Box Form: Independent Tool Capacity: 12-24pieces
High Light:

900mm X Axis Travel Vmc Center

,

3Axis Cnc Vertical Milling Machine

,

24pieces Vmc Machining Center

900mm X Axis Travel 1500x420mm Worktable Size 3 Axis Cnc Vertical Milling Machine VMC Machine Vmc Machining Center



1. The machine tool adopts fully-closed structural design, much safe and reliable; user could choose semi-closed protective structure.

2. Feeding of X, Y and Z adopts famous ball screws of high-precision & high-rigid with high feeding speed and high positioning accuracy.

3. VMC Machine can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. Vmc CNC milling machine is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.





Product description:

It is suitable for processing the plane, inclined surface, groove, hole, etc. of parts. It is a machine manufacturing, mold Ideal processing equipment for industries such as, instruments, meters, automobiles and motorcycles.





Product Specification:



Model No. CNC-950QM-Q
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800x2200x2300mm
Weight of machine 3150KG
Shield opening mode

Pneumatic automatic door



900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 1

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 2



Workpiece samples:

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 3





Our Exhibition:

900mm X Axis Travel 3 Axis Cnc Vertical Milling Machine Vmc Machining Center 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
