Product Details:
|
| Max. Spindle Speed: | 4000r/min | X Axis Travel: | 680mm |
|---|---|---|---|
| Z Axis Travel: | 240mm | X, Z Lead Screw: | R25/C3mm |
| G0 Speed: | 25m/min | Spindle Runout: | 0.003mm |
Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
Description of lathe machine:
1. Aseismatic capability, high strength and good quality cast iron.
2. Main motor and spindle driven through wide-angle belt.
3. High precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

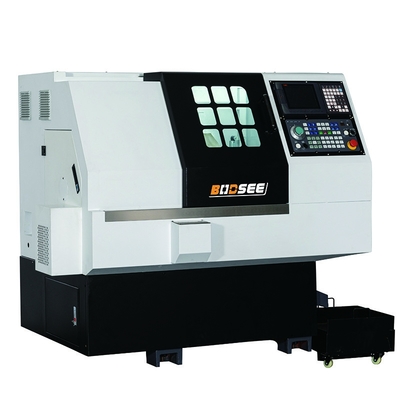

The specification of cnc lathe machine:
| Model No. | BDS-36P |
| Diameter of spindle bore | 45mm |
| Maximum admissible bar stock diameter | 36mm |
| Swing over bed | 350mm |
| Tool table plate and spindle center height | 50mm |
| Max.Processing Length | 200mm |
| Bed structure | 45° |
| Specification of spindle end | A2-4 |
| Max. Spindle speed | 4000r/min |
| X axis travel | 680mm |
| Z axis travel | 240mm |
| Y axis travel | |
| X, Z lead screw | R25/C3mm |
| X, Z guide rail | 25Pmm |
| G0 Speed | 25m/min |
| Spindle runout | 0.003mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum adjustable unit | 0.001mm |
| Machining accuracy | IT6mm |
| Power head specification | ER16/ER20 |
| Power head speed | 3000r/min |
| Turret Specification | 50-816 |
| Clamping Type | Hydraulic collet/ hydraulic chuck |
| Machine weight | 1250KG |
| Machine size | 1700*1250*1600mm |
