Product Details:
|
| Diameter Of Spindle Bore: | 65mm | Max. Spindle Speed: | 3000r/min |
|---|---|---|---|
| Spindle Runout: | 0.003mm | Repeat Positioning Accuracy: | 0.003mm |
| Minimum Adjustable Unit: | 0.001mm | Machining Accuracy: | IT6mm |
| High Light: | Slant Bed CNC Turning Center,3000r/min CNC Turning Center |
||
1. Main motor and spindle driven through wide-angle belt.
2. High precision linear guide ways.
3. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

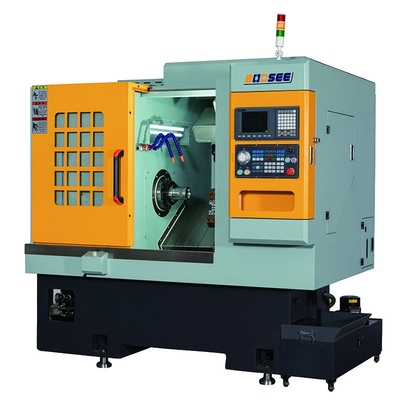

Description of lathe machine:
The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
The specification of cnc lathe machine:
| Model No. | BDS-52DY |
| Diameter of spindle bore | 65mm |
| Maximum admissible bar stock diameter | 52mm |
| Swing over bed | 400mm |
| Tool table plate and spindle center height | 110mm |
| Max.Processing Length | 260mm |
| Bed structure | 35° |
| Specification of spindle end | A2-6 |
| Max. Spindle speed | 3000r/min |
| X axis travel | 800mm |
| Z axis travel | 265mm |
| Y axis travel | 260mm |
| X, Z lead screw | R32/C3mm |
| X, Z guide rail | 30Pmm |
| G0 Speed | 20m/min |
| Spindle runout | 0.003mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum adjustable unit | 0.001mm |
| Machining accuracy | IT6mm |
| Power head specification | ER25 |
| Power head speed | 3000r/min |
| Turret Specification | 63-820 pcs |
| Clamping Type | Hydraulic collet/ Hydraulic chuck |
| Machine weight | 3200KG |
| Machine size | 2250*1500*2050mm |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
FAQ:
We are factory and located in Zhangzhou City, Fujian Province, China.
5. What's the MOQ?
A: 1 set .
6. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
