Product Details:
|
| Diameter Of Spindle Bore: | 28mm | Maximum Admissible Bar Stock Diameter: | 20mm |
|---|---|---|---|
| Swing Over Bed: | 350mm | Tool Table Plate And Spindle Center Height: | 50mm |
| Max.Processing Length: | 200mm | Bed Structure: | 45° |
1. Precision rolling screw vice transmission, using precision linear guide rail, high precision
2. This cnc lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. This lathe machine has induction hardened bed way.
4. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission
5. The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency

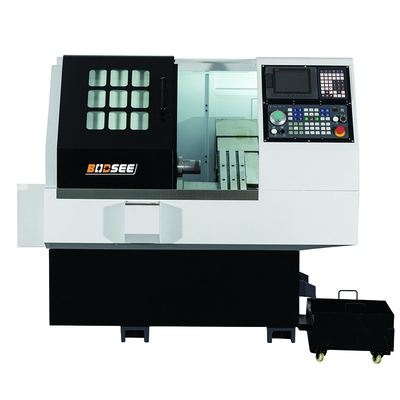

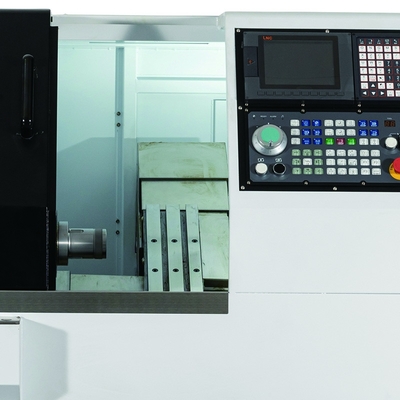

| Model No. | BDS-20P |
| Diameter of spindle bore | 28mm |
| Maximum admissible bar stock diameter | 20mm |
| Swing over bed | 350mm |
| Tool table plate and spindle center height | 50mm |
| Max.Processing Length | 200mm |
| Bed structure | 45° |
| Specification of spindle end | |
| Max. Spindle speed | 5000r/min |
| X axis travel | 680mm |
| Z axis travel | 240mm |
| Y axis travel | |
| X, Z lead screw | R25/C3mm |
| X, Z guide rail | 25Pmm |
| G0 Speed | 25m/min |
| Spindle runout | 0.003mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum adjustable unit | 0.001mm |
| Machining accuracy | IT6mm |
| Power head specification | ER16/ER20 |
| Power head speed | 3000r/min |
| Turret Specification | 50-816 |
| Clamping Type | Pneumatic collet |
| Machine weight | 1150KG |
| Machine size | 1700*1250*1600mm |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
FAQ:
We are factory and located in Zhangzhou City, Fujian Province, China.
5. What's the MOQ?
A: 1 set .
6. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
