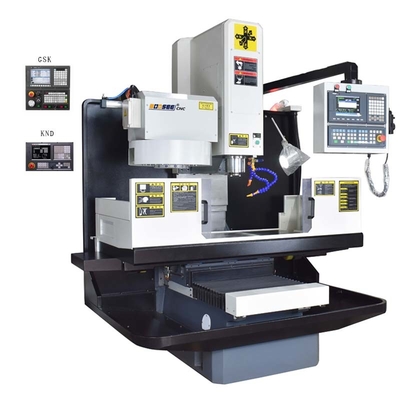

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity
large.img.alt
Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity

Large Image :  Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-1250GM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 Set/Month

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity

Description
Distance From Spindle Center To Column Guideway: 580mm X Rapid Feed: 36m/min
Y Rapid Feed: 36m/min Triaxial Screw Size: 40/12mm
Repeat Positioning Accuracy: 0.008mm Tool Changer: Carousel Tool Changer
High Light:

Automatic Vertical CNC Milling Machine

,

3 Axis Vertical CNC Milling Machine

Automatic VMC Milling Machine 500mm Z Axis Travel Vertical Machine Center

Product Features:

1. High strength alloy cast iron.

2. High quality resin sand.

3. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.

4. Optimal configuration: imported/domestic major outsourcing parts and components including the CNC system, spindle unit, tools magazine, ball screw, bearings, etc.

5. Large travel: larger travels in all three directions than those of the same specifications in the market.



Product Specification:



Model No. CNC-1250GM
X axis travel 1200mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1800x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12/24pieces
Dimension of machine tool 2250*1700*2300mm
Weight of machine 2450KG



Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity 0





Company Information:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity 1

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity 2





Our Exhibition:

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity 3



Workpiece Sample:

Automatic 3 Axis Vertical CNC Milling Machine 12 / 24 Pieces Tool Capacity 4





FAQ:

1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?

1 set .

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
