Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30Set/Month

830mm X Axis VMC CNC Vertical Machining Center 3 Axis High Rigidity Heavy Cutting

Description
Distance From Spindle Nose To The Work Table: 120+360 Mm Distance From Spindle Center To Column Guideway: 370 Mm
X Rapid Feed: 8 M/min Y Rapid Feed: 8 M/min
Z Rapid Feed: 6 M/min Cutting Rapid Feed: 1~4000mm/min
Work Table Size: 1370*280mm Positioning Accuracy: 0.025/300mm
Spindle Motor Power(kW): 3kw
High Light:

830mm CNC Vertical Machining Center 3 Axis

,

VMC CNC Vertical Machining Center 3 Axis

High rigidity heavy cutting 830mm X axis vertical machining center



Advantages:

1. High rigidity and great ability of shock absorption.

2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping

3. Large travel: larger travels in all three directions than those of the same specifications in the market.





Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



830mm X Axis VMC CNC Vertical Machining Center 3 Axis High Rigidity Heavy Cutting 0



Product description:

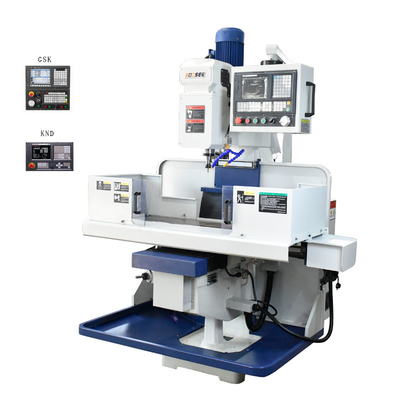

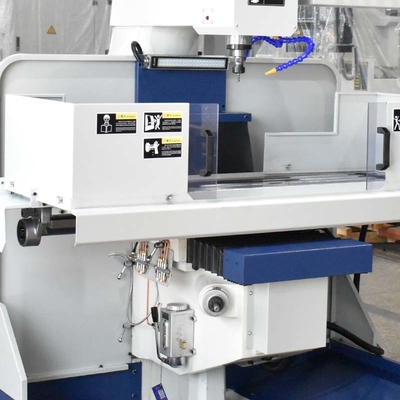

The product is a vertical CNC milling machine with X, Y and Z axis servo control.

The rectangular guideway has large load, high rigidity and compacted in design. The main shaft is 3KW motor driven by belt, it can complete drilling, milling, boring, reaming and other processes for various complex parts such as discs, plates, shells, cams and molds etc.. It is suitable for the production of multiple varieties, small and medium-sized batch of products, and can meet the processing of complex, high-precision parts in batches. It also can be equipped with the 4th rotating axis to meet the processing requirements of special parts.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

830mm X Axis VMC CNC Vertical Machining Center 3 Axis High Rigidity Heavy Cutting 1

830mm X Axis VMC CNC Vertical Machining Center 3 Axis High Rigidity Heavy Cutting 2

830mm X Axis VMC CNC Vertical Machining Center 3 Axis High Rigidity Heavy Cutting 3



FAQ:

1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. What's the main products of your company?
We specialized in many kinds of CNC machines, Vertical VMC Milling Machine.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.
4. Is your company a factory or trading company ?

We are factory and located in Zhangzhou City, Fujian Province, China.

5. What's the MOQ?

A: 1 set .

6. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
