Product Details:
|
| X-axis Manual Travel: | 760 Mm | Overam Travel: | 430mm |
|---|---|---|---|
| Spindle Z-axis Manual Travel: | 127mm | X.Y.Z.Guiding Tracks: | ▲ ▲ ▲ |
| Net Weight (approx.): | 1050 KG | ||
| High Light: | Manual Travel Turret Milling Machine,760mm Turret Milling Machine,R8 Turret Head Milling Machine |
||

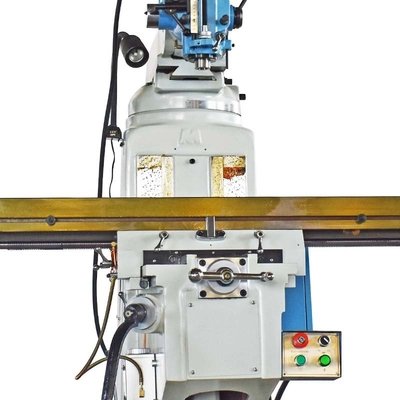

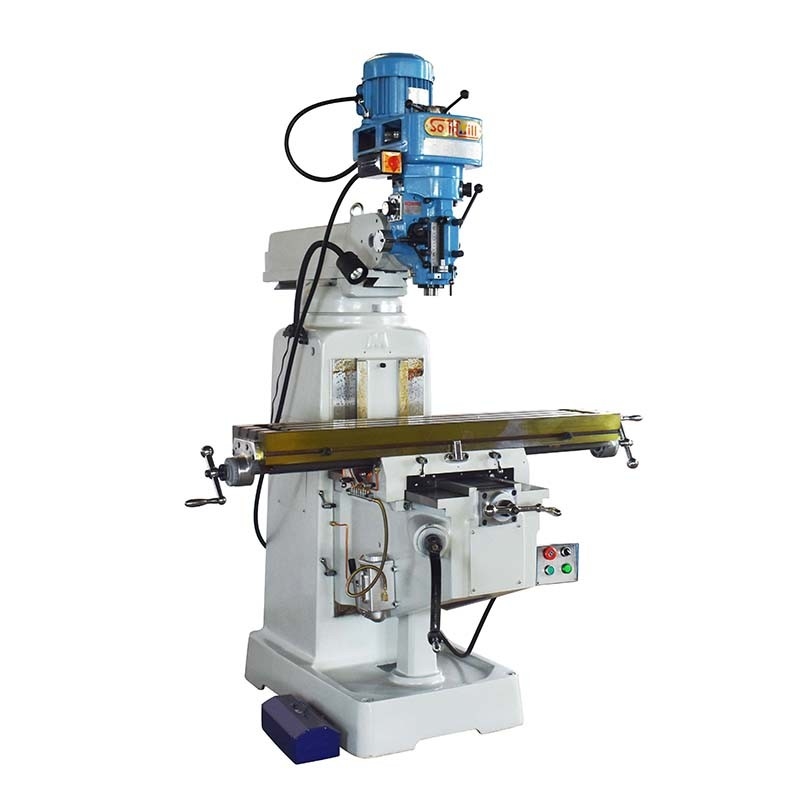

760mm X-Axis Manual Travel Vertical Turret Milling Machine Turret Head Milling Machine

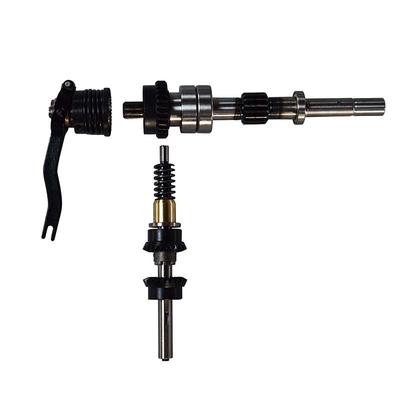

The lifting sleeve is chrome and precision ground, and matched with the precision grade main shaft to match the bearing. It has strong cutting ability and good precision.
Y-axis slide rail is parallel slide rail, and the bed platform is stable and can withstand heavy cutting.
| Item No. | WC-WL3BS | |
| Spindle speed | R.P.M |
75~4630(16) |
| Spindle taper |
R8 or NT30 orNT40 |
|
| Head tilt(right-left) | 45degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
|
X-axis manual travel |
mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam travel | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ▲ ▲ |
|
net weight (approx.) |
kg | 1050 |
Application:
Because the machine tool is easy to operate and use, it is suitable for the maintenance and production of various enterprises, especially for tool, measuring tool and mold manufacturing enterprises.
