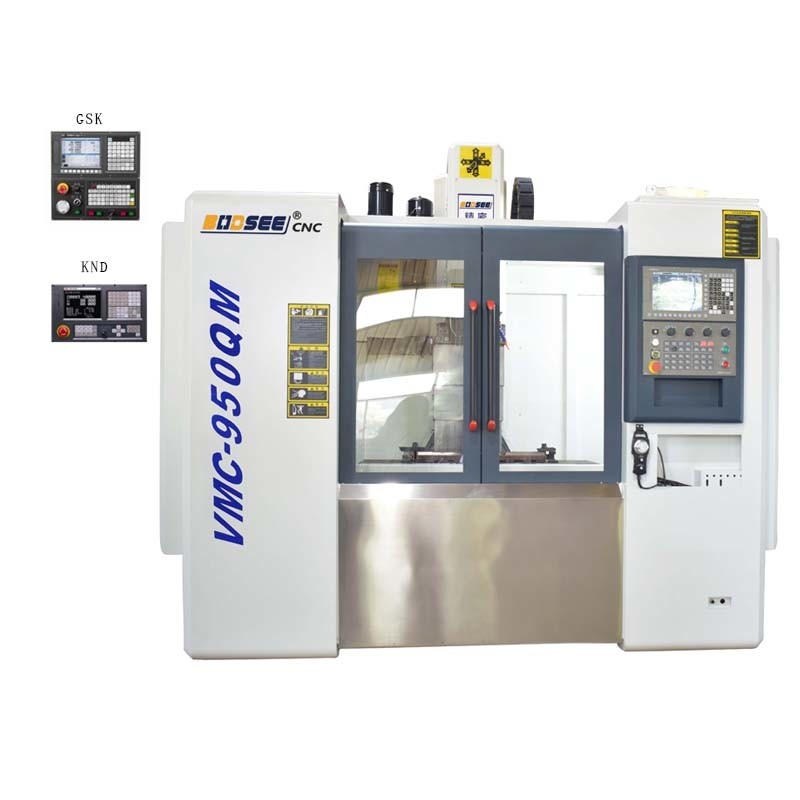

Automatic Vertical CNC Machining Center

Automatic Vertical CNC Machining Center
Automatic Vertical CNC Machining Center Automatic Vertical CNC Machining Center

Large Image :  Automatic Vertical CNC Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Automatic Vertical CNC Machining Center

Description
The Maximum Load Capacity: 400KG Repeat Positioning Accuracy: 0.008mm
Taper Of Spindle Hole: BT40 Tool Changer: Carousel Tool Changer / Side-mount Tool Changer
Triaxial Screw Size: 40/12mm
High Light:

Automatic Vertical CNC Machining Center

,

Vertical CNC Machining Center 500mm

3 Axis Cnc Machining Center 900mm X Axis 500mm Y Axis Travel Vertical Cnc Machining Center



Product description:

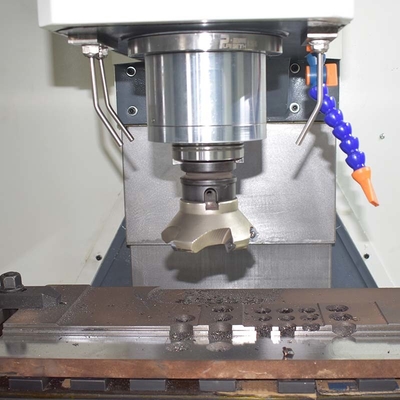

CNC machines are making parts around the world for almost every industry. CNC VMC is the world's highest yield, the most widely used one of the CNC machine tools. It can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.



Product Features:

1. The whole machine has high rigidity, high stability and high reliability.

2. The machine tool has an automatic chip removal function and a large flow chip washing function. The fully enclosed protection has a beautiful shape and is easy to operate and maintain.

3. Drive: The three-axis motor and the high-precision ball screw are directly connected and driven.

4. CNC Controller: the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC numerical control system is adopted.



Product Specification:

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG

Automatic Vertical CNC Machining Center 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Automatic Vertical CNC Machining Center 1

Automatic Vertical CNC Machining Center 2



Workpiece samples:

Automatic Vertical CNC Machining Center 3





Our exhibition:

Automatic Vertical CNC Machining Center 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
