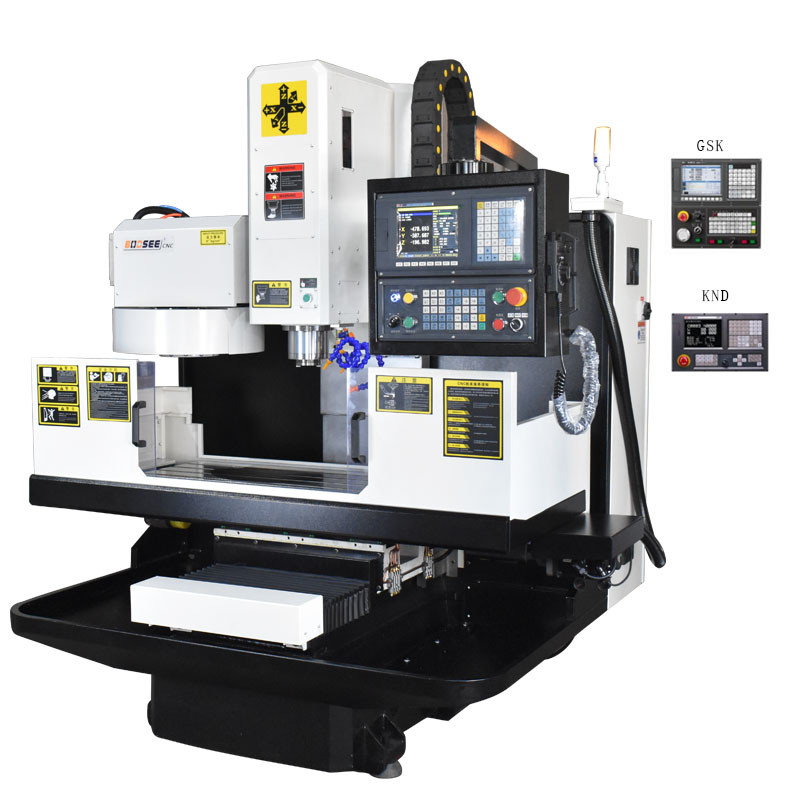

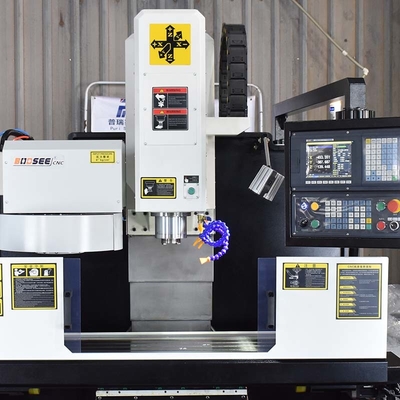

CNC VMC 3 Axis Vertical Milling Machine

CNC VMC 3 Axis Vertical Milling Machine
large.img.alt
CNC VMC 3 Axis Vertical Milling Machine CNC VMC 3 Axis Vertical Milling Machine CNC VMC 3 Axis Vertical Milling Machine

Large Image :  CNC VMC 3 Axis Vertical Milling Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

CNC VMC 3 Axis Vertical Milling Machine

Description
Z Axis Feed Motor Rated Output Torque: 10Nm The Width Of The Triaxial Linear Guide: 35mm
The Maximum Load Capacity: 400KG Z Axis Travel: 450mm
Tool Changer: Carousel Tool Changer
High Light:

VMC 3 Axis Vertical Milling Machine

,

CNC 3 Axis Vertical Milling Machine

Vertical Machining 3 Axis Cnc Milling Machine 400Kg Load CNC VMC Machine



Product Features:

1. Good thermal stability and stabilization precision.

2. High speed, high precision, good surface finishing

3. Made of high-density, high rigidity material, high strength and good wear resistance

4. Assembly main joint surface are hand scraping to ensure the effective contact of the joint surfaces.

5. X, Y, Z three-axis have large travel, especially suitable for the parts machining



Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed



CNC VMC 3 Axis Vertical Milling Machine 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

CNC VMC 3 Axis Vertical Milling Machine 1

CNC VMC 3 Axis Vertical Milling Machine 2



Workpiece Sample:

CNC VMC 3 Axis Vertical Milling Machine 3





CNC VMC 3 Axis Vertical Milling Machine 4





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.

3. What's the MOQ?

MOQ is 1 set.

4. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
