Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity

Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity
Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity

Large Image :  Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity

Description
Z Axis Travel: 500mm Distance From Spindle Center To Column Guideway: 580mm
Y Rapid Feed: 36m/min The Number Of The Slider In The X Axis: 6 Pieces
Positioning Accuracy: 0.01mm Feed Axis Motor Power: 1.8/1.8/2.5KW
High Light:

Vertical VMC Milling Machine

,

Strong Rigidity VMC Milling Machine

,

High Precision 3 Axis CNC Milling Machine

Three Axis Vertical VMC Milling Machine High Precision With Strong Rigidity



Product Description:

CNC-950GM CNC VMC is an automated machine that is suitable for efficient machining of complex parts.



1. Leveling blocks & bolts;

2. Centralized automatic lubrication system.

3. The long span Y type column design leads high rigidity and high stability.

4. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.

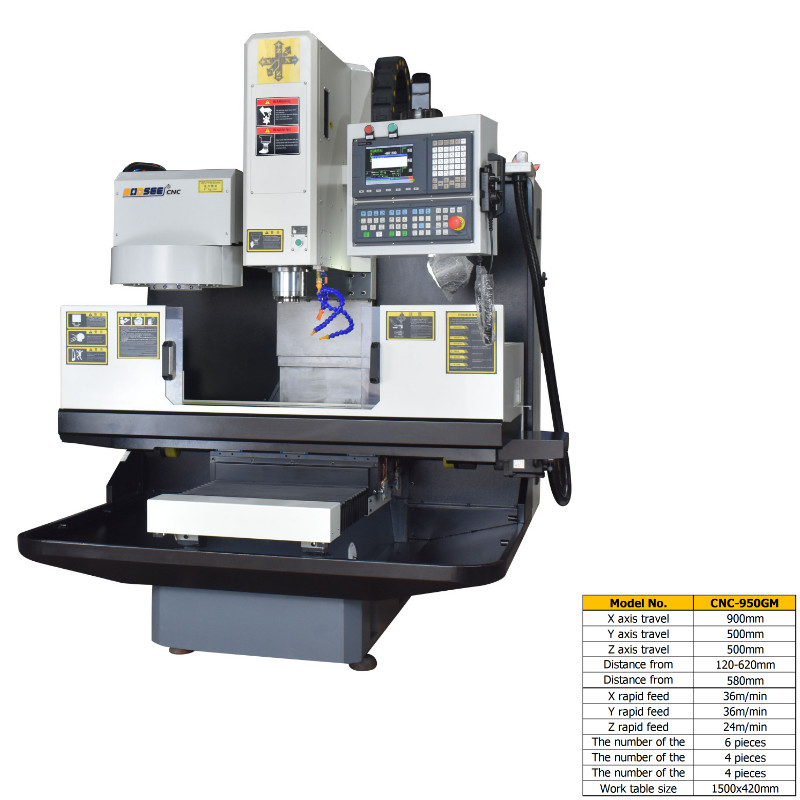

Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

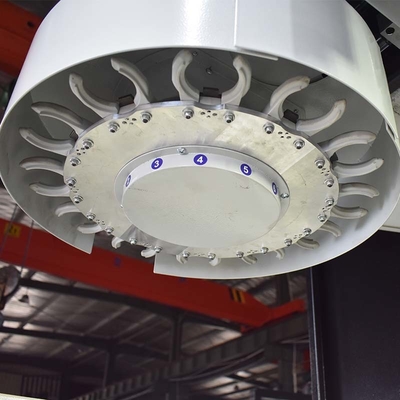

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity 1

Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity 2





Workpiece Samples:

Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity 3





Our Exhibition:

Vertical 3 Axis CNC VMC Milling Machine High Precision With Strong Rigidity 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your lead time?

It depends on customers’ requirement and quantity.

5. What is the MOQ?

MOQ is 1 set.
