Product Details
Place of Origin: Shenzhen China
Brand Name: Lishang Precision Machinery
Certification: CE ISO
Model Number: LS65
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: durable case
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/month
Name: |
CNC Profile Machining Center |
X Axis: |
1800mm |
Y Axis: |
650mm |
Z Axis: |
700mm |
Spindle Speed: |
12000rpm |
Tool Magazine Capacity: |
24pcs |
X/Y/Z Feed Speed: |
15000min |
System: |
FANUC / SIEMENS |
Height: |
3800m |
Floor Area: |
4100×3550mm |
Weight: |
6t |
Name: |
CNC Profile Machining Center |
X Axis: |
1800mm |
Y Axis: |
650mm |
Z Axis: |
700mm |
Spindle Speed: |
12000rpm |
Tool Magazine Capacity: |
24pcs |
X/Y/Z Feed Speed: |
15000min |
System: |
FANUC / SIEMENS |
Height: |
3800m |
Floor Area: |
4100×3550mm |
Weight: |
6t |

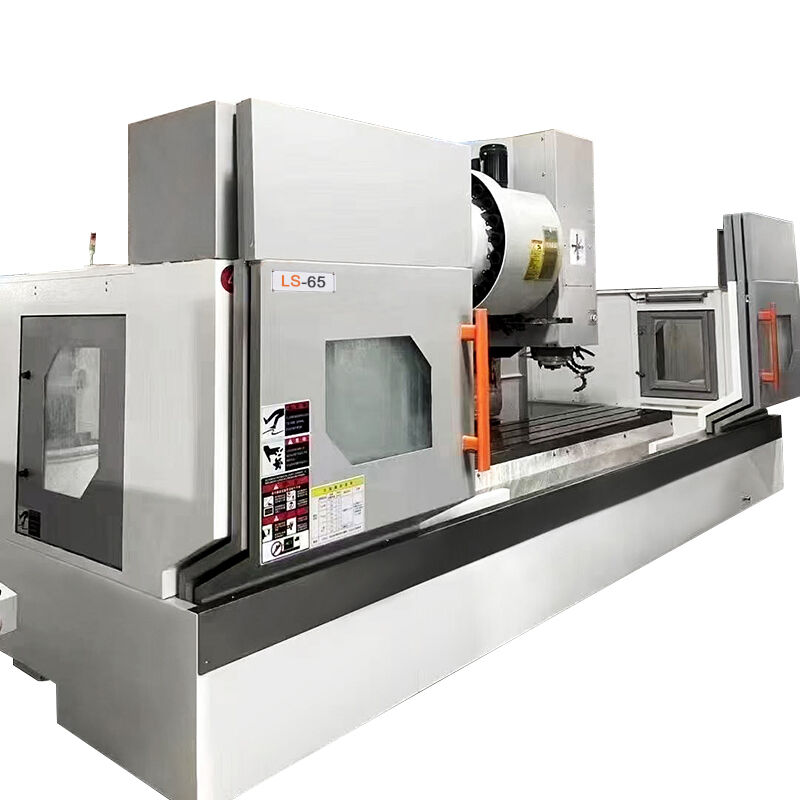

High-Bed Structure and Splash Guard LS65 Series CNC Profile Machining Center for Rail Profiles with Extended Component Life
LS65 series high-bed splash guard CNC machining centers: rail-specific solutions with strong performance and enhanced protection for demanding rail profile machining.
High-bed structure ensures stability for long/heavy rail profiles (rails, rail vehicle parts, guideways) while maintaining precision. Integrated splash guard blocks coolant, chips and debris during high-speed cutting—keeping the workspace clean, protecting key components, extending life and reducing maintenance.
Product specification
| Parameter table - PB65-18/25/45/65 (casting) | |||||||
| Travel | Unit | PB65-18 | PB65-25 | PB65-45 | PB65-65 | ||
| X axis | mm | 1800 | 2500 | 4500 | 6500 | ||
| Y axis | mm | 650 | 650 | 650 | 650 | ||
| Z axis | mm | 700 | 700 | 700 | 700 | ||
| Spindle | |||||||
| Spindle speed | rpm | 12000 | 12000 | 12000 | 12000 | ||
| Spindle taper | / | BT40/SK40/CAT40 | BT40/SK40/CAT40 | BT40/SK40/CAT40 | BT40/SK40/CAT40 | ||
| Tool charger | |||||||
| Tool magazine type | / | Disc | Disc | Disc | Disc | ||
| Tool magazine capacity | pcs | 24 | 24 | 24 | 24 | ||
| Tool change time (tool to tool) | sec | 2 | 2 | 2 | 2 | ||
| Movement speed | |||||||
| X-axis movement | m/min | 50 | 50 | 50 | 50 | ||
| Y-axis movement | m/min | 36 | 36 | 36 | 36 | ||
| Z-axis movement | m/min | 36 | 36 | 36 | 36 | ||
| X/Y/Z feed speed | mm/min | 15000 | 15000 | 15000 | 15000 | ||
| System | FANUC / SIEMENS | ||||||
| Spindle power | 11/18.5kW / 11/23.2kW | ||||||
| X/Y/Z drive motor | 3.0/3.0/3.0 kW / 5.5/3.5/5.5 kW | ||||||
| Cooling system | |||||||
| Screw lubrication | Automatic guide rail oil lubrication device | ||||||
| Cutting cooling | Water spray cutting cooling system | ||||||
| Accuracy | |||||||
| X-axis positioning accuracy | mm | 0.02(Grating0.01) | 0.02(Grating0.01) | 0.02(Grating0.01) | 0.02(Grating0.01) | ||
| Y/Z-axis positioning accuracy | mm | 0.015 | 0.015 | 0.015 | 0.015 | ||
| Repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | ||
| Mechanical specification | |||||||
| Height | mm | 3800 | 3800 | 3800 | 3800 | ||
| Floor area | mm | 4100×3550 | 4900×3550 | 6900×3550 | 9000×3550 | ||
| Weight | T | 6 | 8 | 10 | 12 | ||
Product Feature
1. This machine adopts a high bed structure, which effectively prevents water chips from splashing onto the outside of the equipment, and effectively protects important parts such as guide rails and screw rods, thereby improving the life and reliability of the equipment;
2. The 18 and 25 models are equipped with three-axis screw rods and crossbeams as standard, meeting the needs of higher processing accuracy, with a fast moving speed of 50m/min, and the dynamic performance of the equipment is superior, with higher acceleration. The 45 and 65 models are not equipped with crossbeams as standard;
3. The bottom of the workbench is designed with a large inclined chip removal surface, which makes cleaning and chip removal more convenient;
Application
Mainly used in: aluminum and steel profile processing in industries such as automobile, rail transportation, and machinery manufacturing.
