Product Details:
|
| The Width Of The Triaxial Linear Guide: | 35 Mm | The Maximum Load Capacity: | 400 KG |
|---|---|---|---|
| Positioning Accuracy: | 0.01 Mm | Repeat Positioning Accuracy: | 0.008 Mm |
| Spindle Speed Range: | 20-8000 Rpm/min | ||
| High Light: | 400KG Cnc Vertical Machining Center,3Axis Cnc Vmc Machine,OEM Cnc Vertical Machining Center |
||

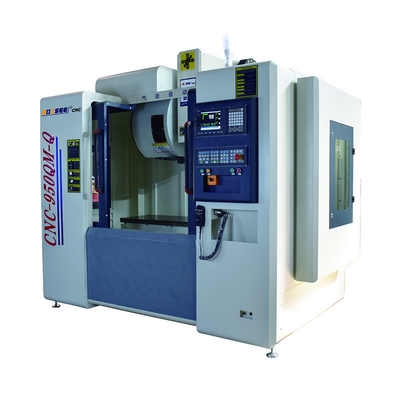

400KG Maximum Load Capacity 3 Axis Cnc Vertical Machining Center Cnc Machining Center Vertical Cnc Milling Machine
1. The cnc vmc machine adopts fully-closed structural design, much safe and reliable; user could choose semi-closed protective structure.
2. It can complete the processing of various processes, and can meet the processing of complex and high-precision parts.
3. High degree of production automation can reduce the labor intensity of operators.
Product Specification:
| Model No. | CNC-950QM-Q | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5/7.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer / Side-mount tool changer |
|
| Tool Capacity | 12-24pieces | |
| Dimension of machine tool | 2800x2200x2300mm | |
| Weight of machine | 3150KG | |
| Shield opening mode | Pneumatic automatic door | |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece samples:
Our Exhibition:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
