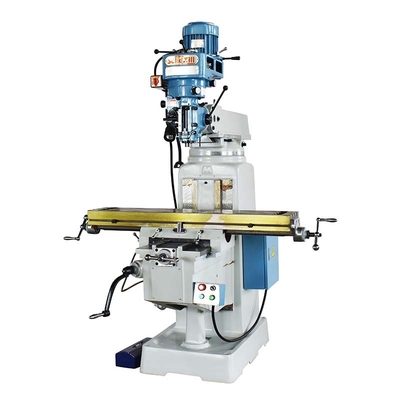

1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working

1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working
1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working

Large Image :  1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working

Product Details:
Place of Origin: Taiwan
Model Number: WC-WL3BS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotation
Payment Terms: T/T, Western Union
Supply Ability: 30set/month

1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working

Description
X.Y.Z.Guiding Tracks: ▲ ▲ ▲ Spindle Speed: 75~4630 (16) R.P.M
Quill Feed Feeds: 0.04/0.08/0.15mm/rev Spindle Z-axis Manual Travel: 127 Mm
High Light:

Vertical Turret Head Milling Machine

,

1270X254mm Turret Head Milling Machine

,

NT30 Vertical Turret Milling Machine

1270*254mm Table Size Vertical Turret Milling Machine Turret Head Milling Machine For Metal Working



Item No. WC-WL3BS
Spindle speed R.P.M

75~4630(16)

Spindle taper

R8 or NT30 orNT40

Head tilt(right-left)   45degree
Table length x table width mm 1270*254
Table load(Max.) kg 300

X-axis manual travel

mm 760
Y-axis manual travel mm 350
Z-axis manual travel mm 350
Spindle nose to Table mm 75-460
Overam travel mm 430
Spindle Z-axis manual travel mm 127
Quill feed feeds mm/rev 0.04/0.08/0.15
machine size(LxWxH) mm 1750*1700*2100
X.Y.Z.Guiding tracks mm ▲ ▲ ▲

net weight (approx.)

kg 1050





Application:



The machine tool is easy to operate and use, it is suitable for the maintenance and production of various enterprises, especially for tool, measuring tool and mold manufacturing enterprises.



1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 0





Company Information:



ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 1

1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 2

1270*254mm Table Size Vertical Turret Head Milling Machine For Metal Working 3



If you are interested in any items, please feel free to contact us. Thank you!
