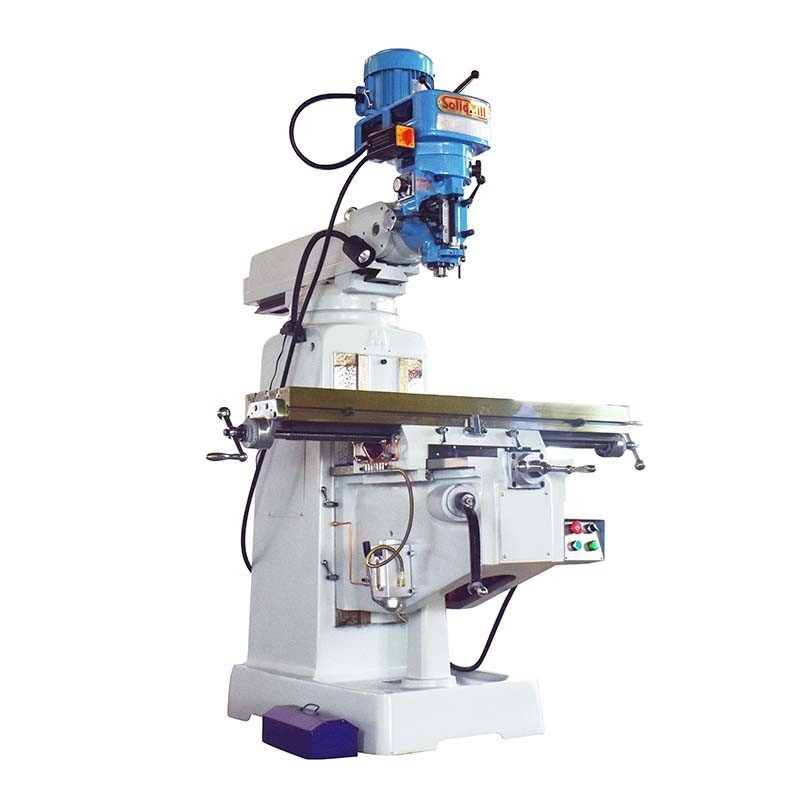

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working
Industrial 3 Axis Vertical Turret Milling Machine For Metal Working Industrial 3 Axis Vertical Turret Milling Machine For Metal Working

Large Image :  Industrial 3 Axis Vertical Turret Milling Machine For Metal Working

Product Details:
Place of Origin: Taiwan
Model Number: WC-WL3BS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotation
Payment Terms: T/T, Western Union
Supply Ability: 30set/month

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working

Description
Spindle Nose To Table: 75-460 Mm Overam Travel: 430 Mm
Spindle Z-axis Manual Travel: 127 Mm Quill Feed Feeds: 0.04/0.08/0.15 Mm/rev
Machine Size(LxWxH): 1750*1700*2100 Mm
High Light:

3 Axis Turret Milling Machine

,

Industrial Vertical Turret Milling Machine

,

Metal Working Vertical Turret Mill

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working Turret Head Milling Machine



The X-axis and Y-axis slideways are subject to high frequency heat treatment and grinding, and the slideway surface is attached with a wear-resistant sliding plate (TURCITE-B) to reduce the friction coefficient of the contact surface. It is more wear-resistant and can ensure excellent accuracy even after long time use.





Item No. WC-WL3BS
Spindle speed R.P.M

75~4630(16)

Spindle taper

R8 or NT30 orNT40

Head tilt(right-left)   45degree
Table length x table width mm 1270*254
Table load(Max.) kg 300

X-axis manual travel

mm 760
Y-axis manual travel mm 350
Z-axis manual travel mm 350
Spindle nose to Table mm 75-460
Overam travel mm 430
Spindle Z-axis manual travel mm 127
Quill feed feeds mm/rev 0.04/0.08/0.15
machine size(LxWxH) mm 1750*1700*2100
X.Y.Z.Guiding tracks mm ▲ ▲ ▲

net weight (approx.)

kg 1050





Application:



Because the machine tool is easy to operate and use, it is suitable for the maintenance and production of various enterprises, especially for tool, measuring tool and mold manufacturing enterprises.





Industrial 3 Axis Vertical Turret Milling Machine For Metal Working 0





Company Information:



ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Industrial 3 Axis Vertical Turret Milling Machine For Metal Working 1

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working 2

Industrial 3 Axis Vertical Turret Milling Machine For Metal Working 3



If you are interested in any items, please feel free to contact us. Thank you!
