127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working

Certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
I'm Online Chat Now

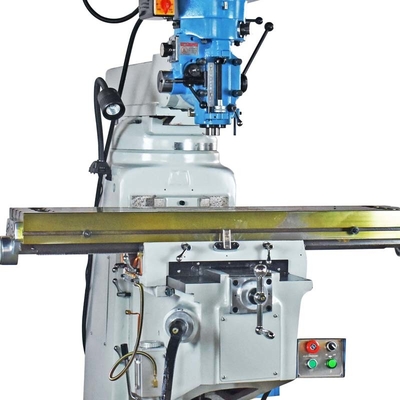

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working
127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working

Large Image :  127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working

Product Details:
Place of Origin: Taiwan
Model Number: WC-WL4BS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotation
Payment Terms: T/T, Western Union
Supply Ability: 30set/month

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working

Description
Z-axis Manual Travel: 350mm X-axis Manual Travel: 760mm
Net Weight (approx.): 1050kg
High Light:

127mm Spindle Turret Milling Machine

,

Z Axis Turret Milling Machine

,

Industrial Cnc Turret Mill

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working



Milling machines are tools used by engineers and machine creators to cut metal into a specific shape.

A turret milling machine is a vertical mill, meaning the spindle — the area that performs the cuts — is positioned vertically. The turret milling machine is

considered a versatile unit, because it can create a wide array of shapes.





Standard Configuration:



Drive screw (Taiwan)

Electrical Box

Powerful end mill head 16-segment speed change (A type belt vertical steel head)

Spindle tie rod

Spindle motor 380V-50HZ-3PH-2P/4P

Abrasion resistant plate (X,Y Axis)

Manual lubrication system

Heat treatment grinding (X,Y Axis)

Working lamp

Toolbox





Item No. WC-WL4BS
Spindle speed R.P.M 75~4630(16)
Spindle taper   R8 or NT30 or NT40
Head tilt(right-left)   45 degree
Table length x table width mm 1270*254
Table load(Max.) kg 300
X-axis manual travel mm 760
Y-axis manual travel mm 350
Z-axis manual travel mm 350
Spindle nose to Table mm 75-460
Overam trave mm 430
Spindle Z-axis manual travel mm 127
Quill feed feeds mm/rev 0.04/0.08/0.15
Machine size(LxWxH) mm 1750*1700*2100
X.Y.Z.Guiding tracks mm ▲ ■ ▲
Net weight (approx.) kg 1050





127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 0

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 1





Company Information:



ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 2

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 3

127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine For Metal Working 4



If you are interested in any items, please feel free to contact us. Thank you!
