Product Details:
|
| Table Load(Max.): | 300kg | X-axis Manual Travel: | 760mm |
|---|---|---|---|
| Spindle Nose To Table: | 75-460mm | Quilk Feed Feeds: | 0.04/0.08/0.15 Mm/rev |
| High Light: | NT40 Spindle Turret Milling Machine,R8 Vertical Turret Milling Machine,1270x254mm Table Turret Mill |
||

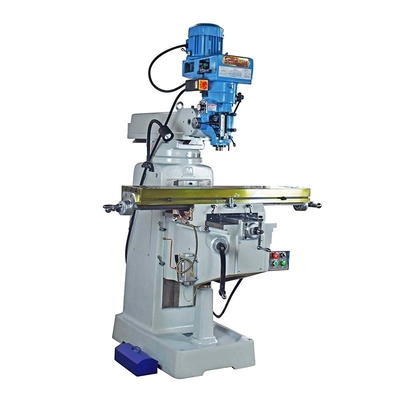

R8 Or NT30 Or NT40 Spindle Vertical Turret Milling Machine 1270*254mm Table Length X Table Width
The X-axis and Y-axis slideways are subject to high frequency heat treatment and grinding, and the slideway surface is attached with a wear-resistant sliding plate (TURCITE-B) to reduce the friction coefficient of the contact surface.
The lifting sleeve is chrome and precision ground, and matched with the precision grade main shaft to match the bearing. It has strong cutting ability and good precision.
Standard Configuration:
Drive screw (Taiwan)
Electrical Box
Powerful end mill head 16-segment speed change (A type belt vertical steel head)
Spindle tie rod
Spindle motor 380V-50HZ-3PH-2P/4P
Abrasion resistant plate (X,Y Axis)
Manual lubrication system
Heat treatment grinding (X,Y Axis)
Working lamp
Toolbox
| Item No. | WC-WL4BS | |
| Spindle speed | R.P.M | 75~4630(16) |
| Spindle taper | R8 or NT30 or NT40 | |
| Head tilt(right-left) | 45 degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
| X-axis manual travel | mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam trave | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| Machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ■ ▲ |
| Net weight (approx.) | kg | 1050 |
