Product Details:
|
| X-axis Manual Travel: | 760mm | Y-axis Manual Travel: | 350mm |
|---|---|---|---|
| Z-axis Manual Travel: | 350mm | Spindle Nose To Table: | 75-460mm |
| High Light: | 1270x254mm Worktable Turret Mill,760mm X Axis Turret Milling Machine,NT40 Vertical Turret Milling Machine |
||

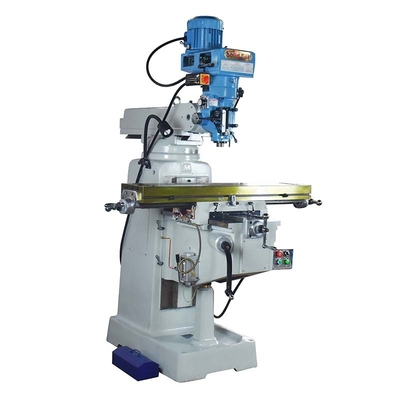

760mm X Axis Manual Travel 1270x254mm Worktable Size Powerful Turret Vertical Milling Machine For Metal Working
The X-axis and Y-axis slideways are subject to high frequency heat treatment and grinding, and the slideway surface is attached with a wear-resistant sliding plate (TURCITE-B) to reduce the friction coefficient of the contact surface. It is more wear-resistant and can ensure excellent accuracy even after long time use.
Y-axis slide rail is parallel slide rail, and the bed platform is stable and can withstand heavy cutting.
| Item No. | WC-WL4BS | |
| Spindle speed | R.P.M | 75~4630(16) |
| Spindle taper | R8 or NT30 or NT40 | |
| Head tilt(right-left) | 45 degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
| X-axis manual travel | mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam trave | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| Machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ■ ▲ |
| Net weight (approx.) | kg | 1050 |
Company Information:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
If you are interested in any items, please feel free to contact us. Thank you!
