Product Details:
|
| Diameter Of Spindle Bore: | 65mm | Max. Spindle Speed: | 3000r/min |
|---|---|---|---|
| X Axis Travel: | 300mm | Z Axis Travel: | 500mm |
| Spindle Runout: | 0.003mm | Minimum Adjustable Unit: | 0.001mm |
| High Light: | CNC Slant Turning Lathe Machine,3000r/min Slant Turning Lathe Machine |
||
1. Fully enclosed protective cover.
2. The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency.
3. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission
4. This cnc lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.

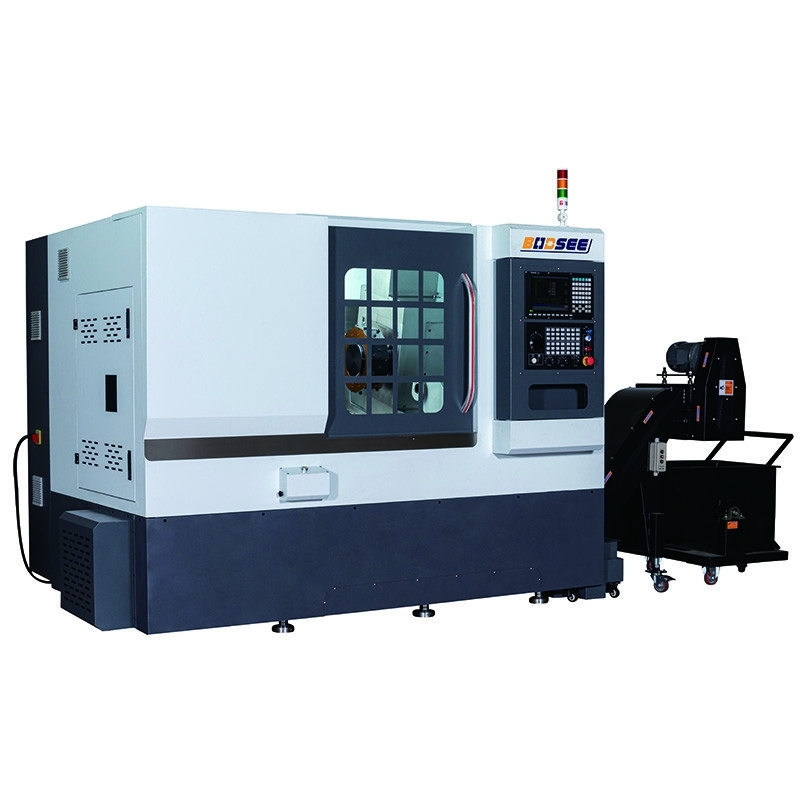

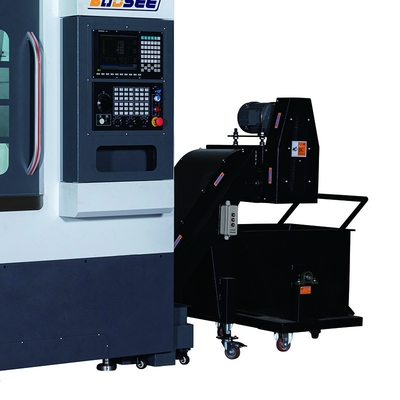

Description of lathe machine:
The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
Linear guideway, super high rigidity.
Adopt modularization design, easy for various especial configuration choice, such as tool setter, parts catcher etc
The specification of cnc lathe machine:
| Model No. | BDS-400T-52D |
| Diameter of spindle bore | 65mm |
| Maximum admissible bar stock diameter | 52mm |
| Swing over bed | 500mm |
| Tool table plate and spindle center height | 160mm |
| Max.Processing Length | 460mm |
| Bed structure | 15° |
| Specification of spindle end | A2-6 |
| Max. Spindle speed | 3000r/min |
| X axis travel | 300mm |
| Z axis travel | 500mm |
| Y axis travel | |
| X, Z lead screw | R32/C3mm |
| X, Z guide rail | 45Pmm |
| G0 Speed | 22m/min |
| Spindle runout | 0.003mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum adjustable unit | 0.001mm |
| Machining accuracy | IT6mm |
| Specification of power turret | 100-1225/125-1225/BMT55 |
| Chuck type | 8inch |
| Machine weight | 4000KG |
| Machine size | 2600*1800*1900mm |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
FAQ:
We are factory and located in Zhangzhou City, Fujian Province, China.
5. What's the MOQ?
A: 1 set .
6. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
