Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing

Certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
I'm Online Chat Now

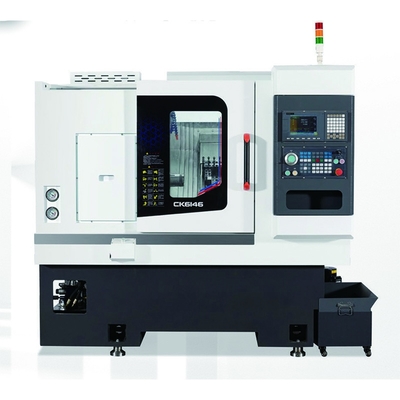

Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing

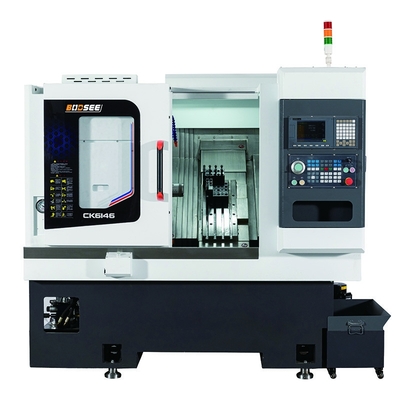

Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing
Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing

Large Image :  Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: BDS-36L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets per month

Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing

Description
Diameter Of Spindle Bore: 45mm Maximum Admissible Bar Stock Diameter: 36mm
X Axis Travel: 960mm Z Axis Travel: 380mm
X, Z Lead Screw: R32/C3mm X, Z Guide Rail: 30Pmm

Lathe CNC Machine For Metal Cnc Machine Metal Cnc Slant Bed Lathe Machine For Turning Automatic


1. Precision rolling screw vice transmission, using precision linear guide rail, high precision

2. Wide flat-belt drive between headstock and motor for powerful non-slip power transmission

3. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries.





Description of lathe machine:

Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.



Precision Metal Turning CNC Lathe Machine Horizontal Slant Bed CNC Lathe For metal processing 0





The specification of cnc lathe machine:



Model No. BDS-36L
Diameter of spindle bore 45mm
Maximum admissible bar stock diameter 36mm
Swing over bed 350mm
Tool table plate and spindle center height 70mm
Max.Processing Length 300mm
Bed structure 35°
Specification of spindle end A2-4
Max. Spindle speed 4000r/min
X axis travel 960mm
Z axis travel 380mm
Y axis travel
X, Z lead screw R32/C3mm
X, Z guide rail 30Pmm
G0 Speed 25m/min
Spindle runout 0.003mm
Repeat positioning accuracy 0.003mm
Minimum adjustable unit 0.001mm
Machining accuracy IT6mm
Power head specification ER25
Power head speed 3000r/min
Turret Specification 63-820 pcs
Clamping Type Hydraulic collet/
Hydraulic chuck
Machine weight 2500KG
Machine size 2250*1500*2050mm



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 1

Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 2

Industrial High Precision Metal Cnc Lathe Machine 650*190/50mm 3





FAQ:

1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. What's the main products of your company?
We specialized in many kinds of CNC machines, CNC Lathe machines, Vertical VMC Milling Machine.
3. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines, cnc lathe machine.
4. Is your company a factory or trading company ?

We are factory and located in Zhangzhou City, Fujian Province, China.

5. What's the MOQ?

A: 1 set .

6. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
