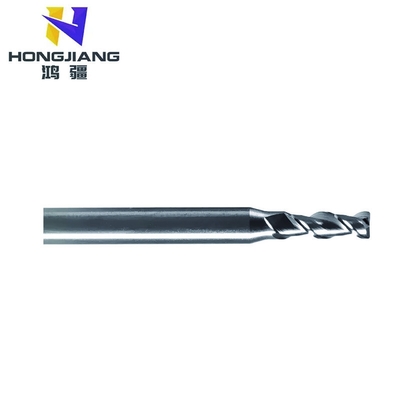

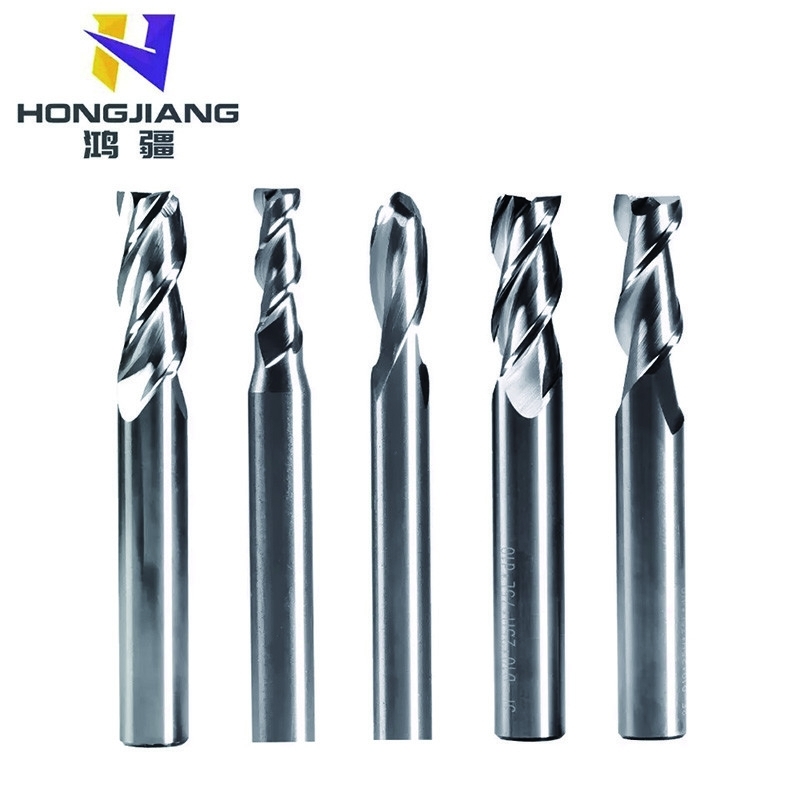

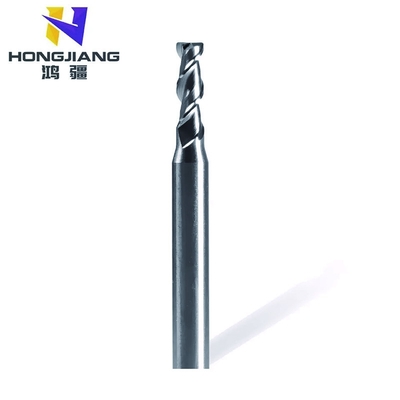

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill
Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill
Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill

Large Image :  Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill

Product Details:
Place of Origin: China
Brand Name: Hong Jiang
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delivery Time: 100000 Piece/Pieces per Month
Payment Terms: T/T, Western Union, MoneyGram
Contact Now

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill

Description
Coating: AlTiN, TiAIN Way Of Cutting: Finishing
Material: Carbide, Tungsten Cobalt Alloy, Tungsten Carbide Flute: 2Flutes
Workpiece Material: Aluminum Alloy Etc Corner: Corner Radius
High Light:

2Flutes Corner Radius End Mill

,

Carbide Cnc Milling Cutter

Carbide Milling Cutter 2 Flutes Corner Radius Endmill cutter for Aluminium Alloys General Machining

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 0

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 1

Machining of High-hardness Workpieces:

Large rake angle with special circumference cutting edge design efficiently prevents built-up edge.

Exceptional flute design ensures tool strength and chip discharge capacity, thus significantly improving machining stability.

Ultra-fine grained carbide substrate offers good wear resistance and high cutting edge strength.





Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 2

Order Code
Cutting Diameter
(D)
Length of Cut
(Lc)
Overall Length
(L)
Shank Diameter
(d)
Type
A-R2-01001
1
3
0.1
50
A
A-R2-01002
1
3
0.2
50
A
A-R2-01202
1.2
3
0.2
50
A
A-RL2-01502
1.5
6
0.2
50
A
A-R2-02002
2
6
0.2
50
A
A-R2-02005
2
6
0.5
50
A
A-R2-03002
3
9
0.2
50
A
A-R2-03003
3
9
0.3
50
A
A-R2-03005
3
9
0.5
50
A
A-R2-04002
4
11
0.2
50
B
A-RS2-04005
4
6
0.5
50
B
A-R2-05002
5
13
0.2
50
A
A-R2-05003
5
13
0.3
50
A
A-R2-O6005
6
16
0.5
50
B
A-R2-06010
6
16
1
50
B
A-R2-08005
8
20
0.5
60
B
A-R2-08010
8
20
1
60
B
A-RS2-10002
10
15
0.2
50
B
A-R2-10005
10
25
0.5
75
B
A-R2-10020
10
25
2
75
B

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 3

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 4

Carbide Cnc Milling Cutter 2 Flutes Corner Radius End Mill 5
