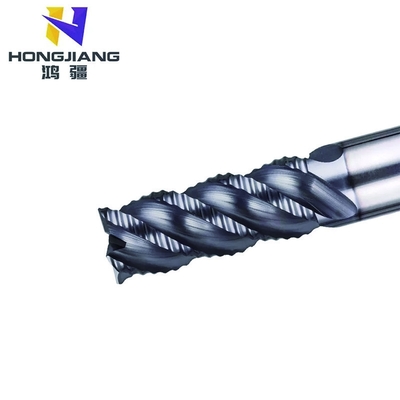

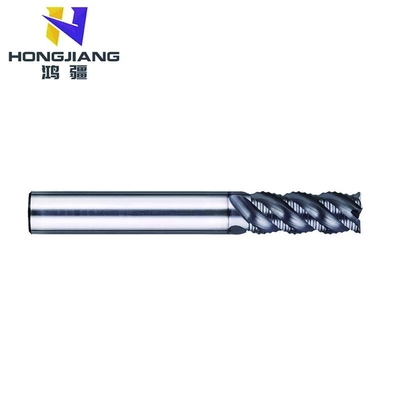

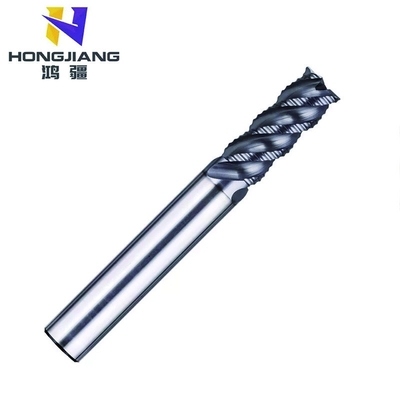

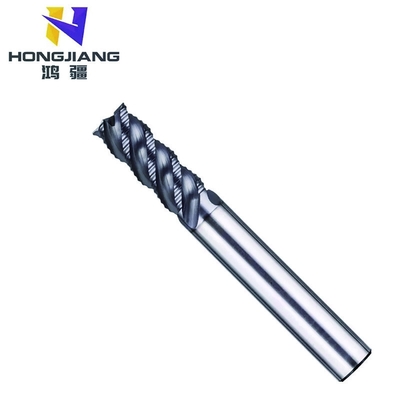

4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill

4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill
4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill
4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill

Large Image :  4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill

Product Details:
Place of Origin: China
Brand Name: Hong Jiang
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delivery Time: 100000 Piece/Pieces per Month
Payment Terms: T/T, Western Union, MoneyGram
Contact Now

4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill

Description
Flute: 4 Flutes Flute Length: 16mm
Overall Length: 50mm Material: Carbide, Tungsten Cobalt Alloy, Tungsten Carbide
Feature: Square
High Light:

4Flutes CNC Cutting Tool

,

50mm Carbide CNC Cutting Tool

Carbide Milling Cutter 4 Flutes Square Carbide Cutting Tool End Mill Carbide Cutter For Roughing Solid Carbide End Mill



Solid Carbide Roughing End Mill - Square End - 4 Flutes
Suitable for roughing and semi-finishing of general steel and cast iron (up to 48HRC);
Exceptional design of chipbreaker enables chip size smaller and offers smooth chip discharge, ensuring excellent finished surface;
High grade ultra-fine grained carbide substrates coupled with high performance AlCrSiN coating, providing good heat and wear resistance.

4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 0
4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 1
4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 2
Order Code
Cutting Diameter
(D)
Length of Cut
(Lc)
Chamfer
(C)
Overall Length
(L)
Shank Diameter
(d)
Type
UN-S4-06016
6
16
0.2
50
6
B
UN-S4-08020
8
20
0.2
60
8
B
UN-S4-10025
10
25
0.3
75
10
B
UN-S4-12030
12
30
0.3
75
12
B
UN-S4-16036
16
36
0.4
100
16
B
UN-S4-20045
20
45
0.5
100
20
B



4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 3

4 Flutes Square CNC Cutting Tool Carbide Cutter For Roughing Solid Carbide End Mill 4
