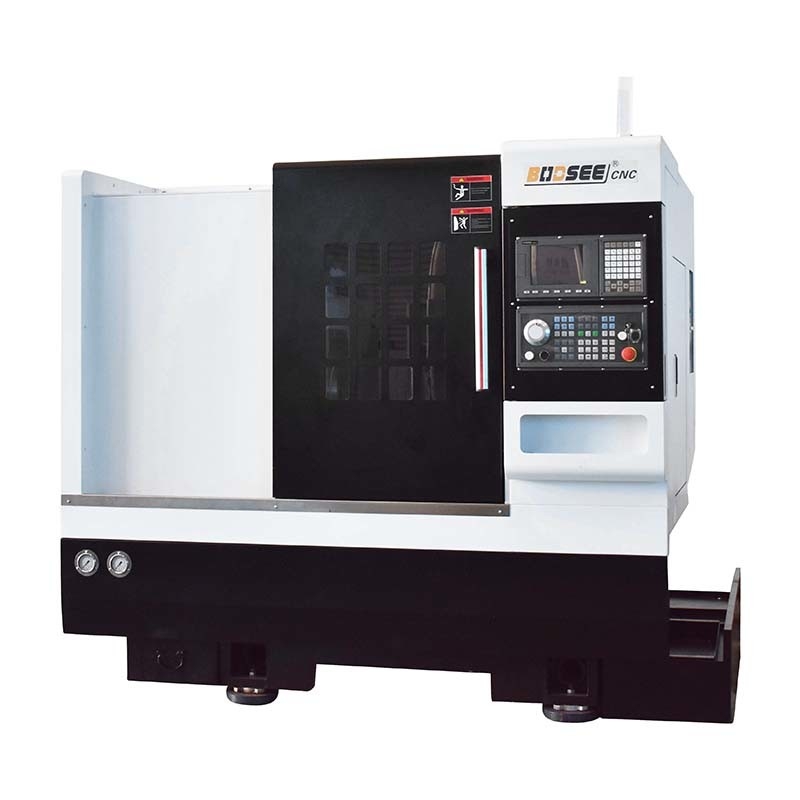

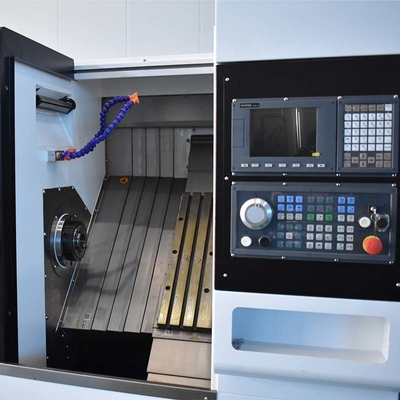

Product Details:
|
| Spindle Through Hole Diameter: | Φ45mm/Φ56mm | Minimum Setting Unit: | 0.001m/min |
|---|---|---|---|
| Weight: | 2.4T/2.7T | Recommended X-axis Motor Torque: | 8N.M |
| Guideway Specifications (X/Z): | 30mm/30mm | ||
| High Light: | Vertical Cnc Lathe Machine,50mm Automatic Cnc Lathe Machine |
||
| Model No. | BDS-46B | BDS-46C | |
| Max swing over bed | Φ460mm | Φ460mm | |
| Max cutting diameter | Φ280mm | Φ280mm | |
| Maximum machining diameter on tool rest | Φ126mm | Φ126mm | |
| Spindle nose | A2-4/A2-5(optional) | A2-4/A2-5(optional) | |
| Spindle through hole diameter | Φ45mm/Φ56mm | Φ45mm/Φ56mm | |
| Trombone through-hole diameter | Φ35mm/Φ45mm | Φ35mm/Φ45mm | |
| Spindle rotation speed | 0-5000rpm/0-6000rpm | 0-5000rpm/0-6000rpm | |
| The spindle of output power | 5.5KW/7.5 | 5.5KW/7.5KW | |
| X/Z Screw model | 3210/3210 | 3210/3210 | |
| Guideway specifications (X/Z) | 30mm/30mm | 30mm/30mm | |
| (X/Z)Axis Max Travel | 900mm/360mm | 900mm/360mm | |
| Rapid feed | 28/28m/min | 28/28m/min | |
| Minimum setting unit | 0.001m/min | 0.001m/min | |
| Recommended X-axis motor torque | 8N.M | 8N.M | |
| Work Table Size/Center distance | 650*190/50mm | 650*190/50mm | |
| Distance from spindle center to the work table | 63mm | 63mm | |
| Bed form and slope | Overall 45° | Overall 45° | |
| Optional system | SYNTEC/GSK | SYNTEC/GSK | |
| Dimension (L*W*H) | 2200*1530*1780 | 2360*1600*1780 | |
| Weight | 2.4T | 2.7T | |
Product description:
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
FAQ:
We are factory and located in Zhangzhou City, Fujian Province, China.
5. What's the MOQ?
A: 1 set .
6. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
