Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit
Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit

Large Image :  Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: BDS-46B/BDS-46C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden package
Delivery Time: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets per month

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit

Description
Max Swing Over Bed: Φ460mm Maximum Machining Diameter On Tool Res: Φ126mm
Rapid Feed: 28/28m/min Bed Form And Slope: Overall 45°
Spindle Rotation Speed: 0-5000rpm/0-6000rpm
High Light:

Metal CNC Lathe Machine 0.001m/Min

,

Overall 45Deg CNC Lathe Machine

0.001m/Min Minimum Setting Unit CNC Metal Lathe Machine Cnc Metal Lathe 650*190/50mm Work Table Size/Center Distance

This machine is mainly used for processing various shaft, disk parts, turning, and could turn the conical surface,
circular arc surface, end face of the rotary parts,



Product Specification:


Model No. BDS-46B BDS-46C
Max swing over bed Φ460mm Φ460mm
Max cutting diameter Φ280mm Φ280mm
Maximum machining diameter on tool rest Φ126mm Φ126mm
Spindle nose A2-4/A2-5(optional) A2-4/A2-5(optional)
Spindle through hole diameter Φ45mm/Φ56mm Φ45mm/Φ56mm
Trombone through-hole diameter Φ35mm/Φ45mm Φ35mm/Φ45mm
Spindle rotation speed 0-5000rpm/0-6000rpm 0-5000rpm/0-6000rpm
The spindle of output power 5.5KW/7.5 5.5KW/7.5KW
X/Z Screw model 3210/3210 3210/3210
Guideway specifications (X/Z) 30mm/30mm 30mm/30mm
(X/Z)Axis Max Travel 900mm/360mm 900mm/360mm
Rapid feed 28/28m/min 28/28m/min
Minimum setting unit 0.001m/min 0.001m/min
Recommended X-axis motor torque 8N.M 8N.M
Work Table Size/Center distance 650*190/50mm 650*190/50mm
Distance from spindle center to the work table 63mm 63mm
Bed form and slope Overall 45° Overall 45°

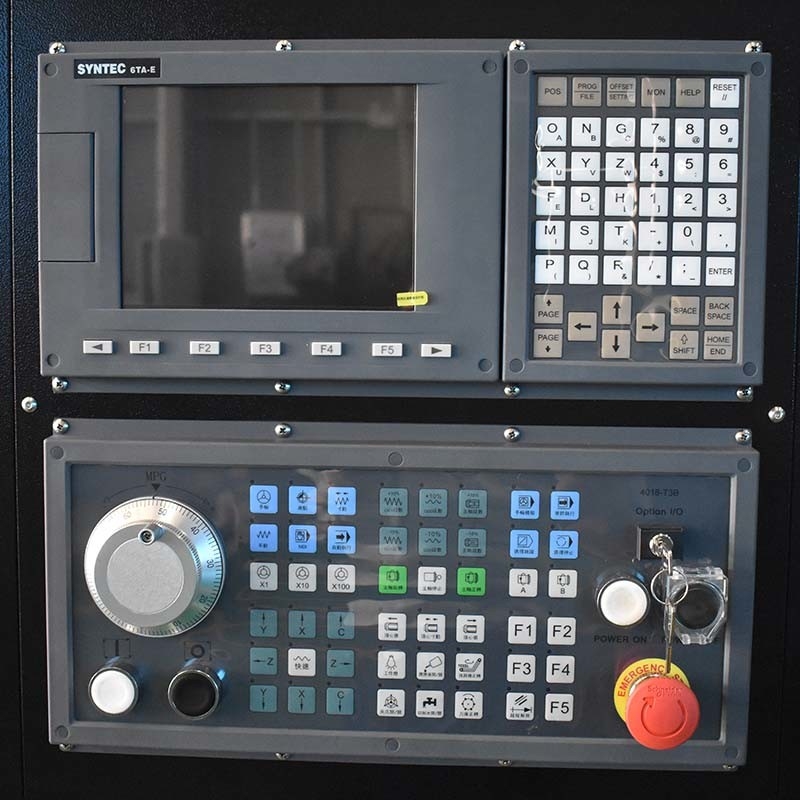

Optional system SYNTEC/GSK SYNTEC/GSK
Dimension (L*W*H) 2200*1530*1780 2360*1600*1780
Weight 2.4T 2.7T

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit 0





Product description:

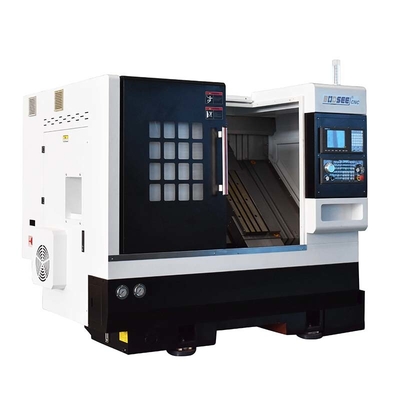

1. 45 degrees slant bed CNC lathe machine.
2. Higher accuracy linear guide.
3. Chip conveying capacity is large and convenient, customer could choose.
4. Chip conveying in the front or in the back.
5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected
with the screw, screw supporting the use of pre-stretching structure.

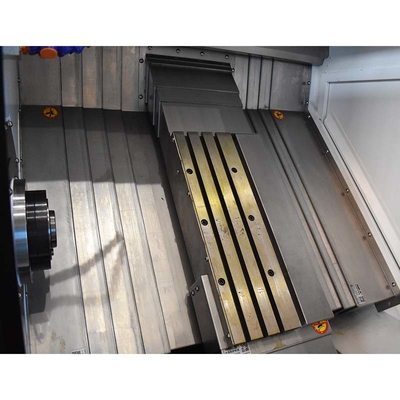

6. Gang type tool post.





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit 1

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit 2

Metal CNC Lathe Machine 0.001m/Min Minimum Setting Unit 3
