Product Details:
|
| Y Axis Travel: | 500mm | Y Rapid Feed: | 36m/min |
|---|---|---|---|
| Cutting Rapid Feed: | 8000mm/min | Work Table Size: | 1500x420mm |
| Repeat Positioning Accuracy: | 0.008mm | ||
| High Light: | CNC High Speed VMC Machine,BT40 Spindle High Speed VMC Machine,High Rigidity Metal CNC Milling Machine |
||

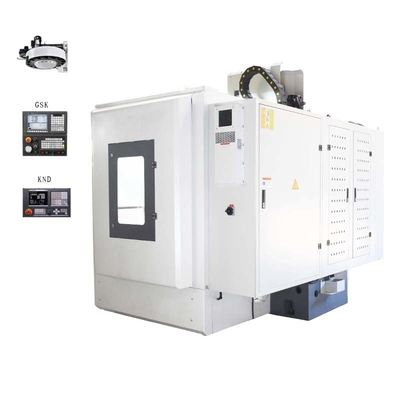

High Speed VMC Machine High Rigidity BT40 Spindle Metal Cnc Milling Machine Long Work Table
Product description:
Product Features:
1. The machine tool has low vibration during high-speed feeding, no crawling during low-speed feeding, and high precision stability.
2. The servo motor adopts advanced absolute value encoder and motor, which ensures the advantages of high stability, fast speed, smooth surface and high precision of the control system. Functions and machining capabilities.
3. Laser Compensation: High-precision pitch compensation. Each drive shaft adopts high-precision laser laser for detection and optimization compensation to make the positioning accuracy of each axis more accurate and more suitable for processing high-precision parts.
Product Specification:

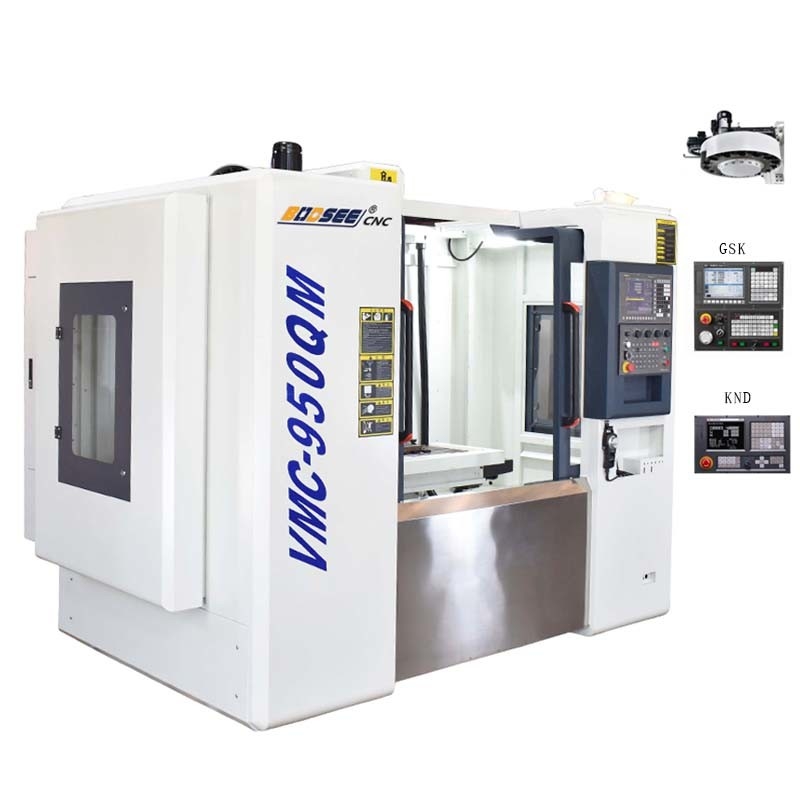

| Model No. | CNC-950QM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5/7.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer / Side-mount tool changer |
|
| Tool Capacity | 12-24pieces | |
| Dimension of machine tool | 2800*2200*2300mm | |
| Weight of machine | 3150KG | |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece samples:
Our exhibition:
FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
