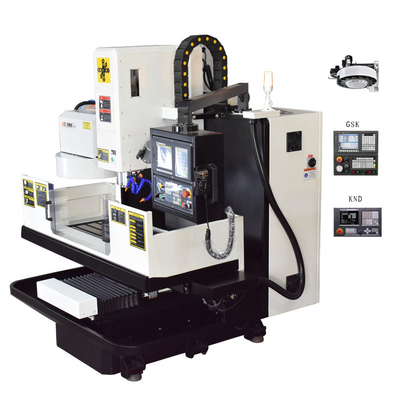

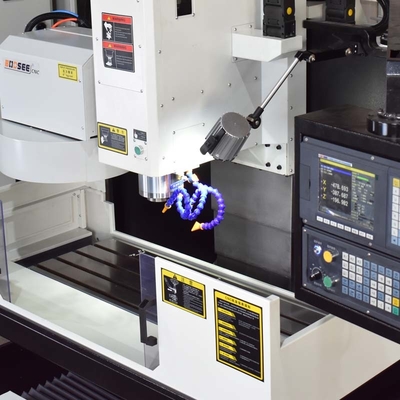

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load

Certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
I'm Online Chat Now

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load
large.img.alt
Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load

Large Image :  Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load

Description
X Axis Travel: 950mm Cutting Rapid Feed: 0-8000mm/min
Triaxial Screw Size: 40/12mm The Maximum Load Capacity: 400KG
Repeat Positioning Accuracy: 0.008mm Tool Capacity: 12pieces
High Light:

Three Axis VMC Milling Machine

,

VMC Milling Machine 400kg

3 Axis Cnc Machining Center Long Work Table 1500x420mm CNC Machining Equipment Vertical Milling Center 400kg Max Load



Product Features:

1. Centralized automatic lubrication system.

2. Taiwan ATC, umbrella type or disc type are available.

3. The long span Y type column design leads high rigidity and high stability.

4. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.

5. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.



Product Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40
Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed





Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load 0



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load 1

Vertical Three Axis VMC Milling Machine Long Work Table 1500x420m 400kg Max Load 2





FAQ:

1. How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What's your main products of your company?

A: We specialized in CNC Milling Machine ,Vertical Machining Center.

3. Where is our factory located? How can I visit there?

A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.

4. What's the MOQ?

A: 1 set .

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
