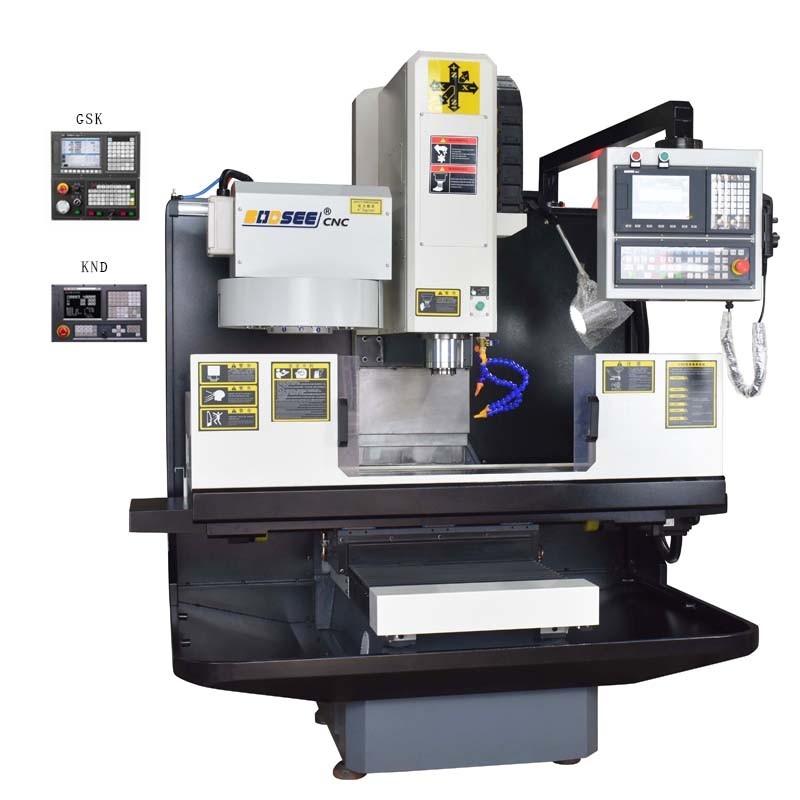

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table
Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table

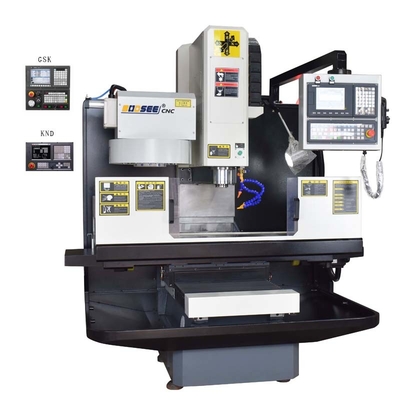

Large Image :  Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table

Description
Z Axis Travel: 500mm Distance From Spindle Nose To The Work Table: 120-620mm
Cutting Rapid Feed: 8000mm/min Triaxial Screw Size: 40/12mm
Positioning Accuracy: 0.01mm Feed Motor Connection Form: Direct Connection
High Light:

Industrial CNC Vertical Milling Machine

,

900mm CNC Vertical Milling Machine

Industrial CNC Milling Machine Long Work Table 1500x420mm CNC Vertical Milling Machine 900mm X Axis Travel



Product Description:

CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. It is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.





Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

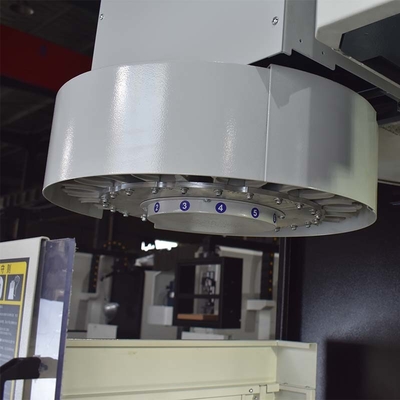

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table 0



Product Features:

1. Precision casting, precision machining, precision assembly.

2. Good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.

3. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing.

4. Heat exchanger for electrical cabinet.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table 1

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table 2





Workpiece sample:

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table 3





Our Exhibition:

Industrial CNC Vertical Milling Machine 900mm X Axis Travel 1500x420mm Work Table 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. What is your lead time?

It depends on customers’ requirement and quantity.
