Product Details:
|
| Z Axis Travel: | 500mm | Cutting Rapid Feed: | 8000mm/min |
|---|---|---|---|
| The Number Of The Slider In The Y Axis: | 4 Pieces | Spindle Speed Range: | 20-8000rpm/min |
| The Spindle Of Output Power: | 5.5KW | Cooling Box Form: | Independent |
| High Light: | 3 Axis CNC Vertical Milling Machine,CNC Vertical Milling Machine BT40 |
||
Y Axis Travel 500mm VMC Vertical Machining Center BT40 3 Axis Cnc Machining Center
Product Description:

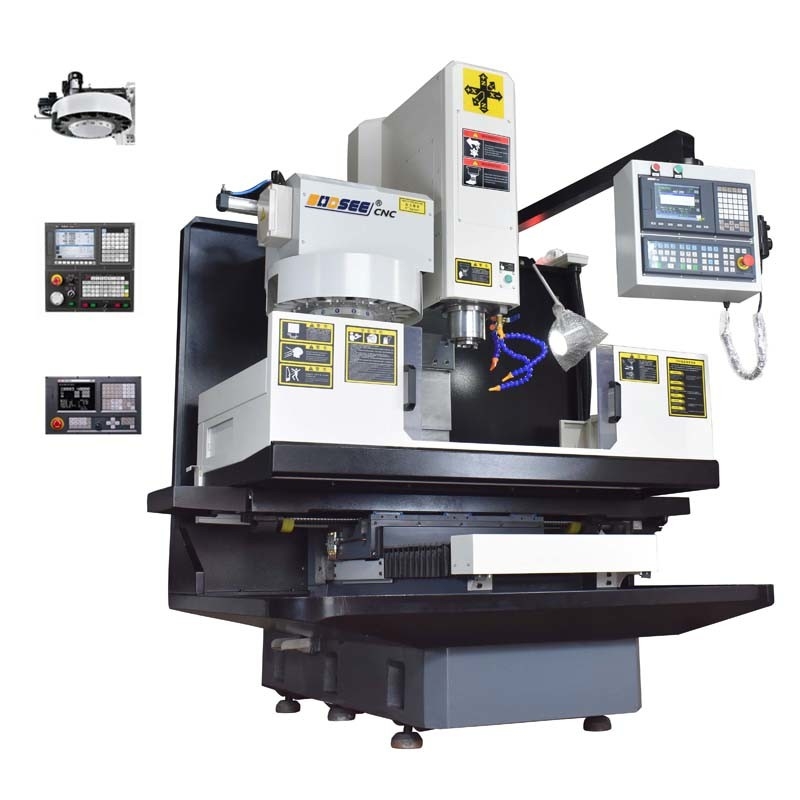

CNC-950GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system. This VMC is suitable for mechanical processing and mold making.
Product Specification:
| Model No. | CNC-950GM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5KW | |
| Cooling box form | Independent | |

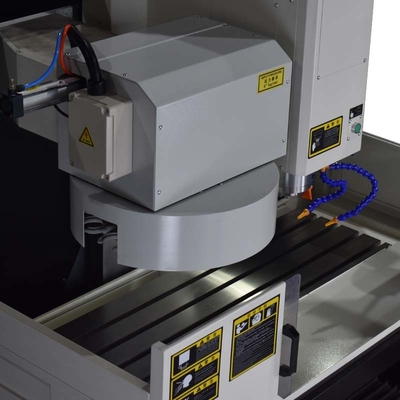

| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12pieces | |
| Dimension of machine tool | 1950/1700/2300mm | |
| Weight of machine | 2250KG | |
Product Features:
1. It adopts special casting process to improve the mechanical properties of materials.
2. Made of high-density, high rigidity material, high strength and good wear resistance.
3. 12/24T ATC
4. It can install 4th axis and install 5th axis.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece sample:
Our Exhibition:
FAQ:
1. Are you a manufacturer or a trader?
It depends on customers’ requirement and quantity.
