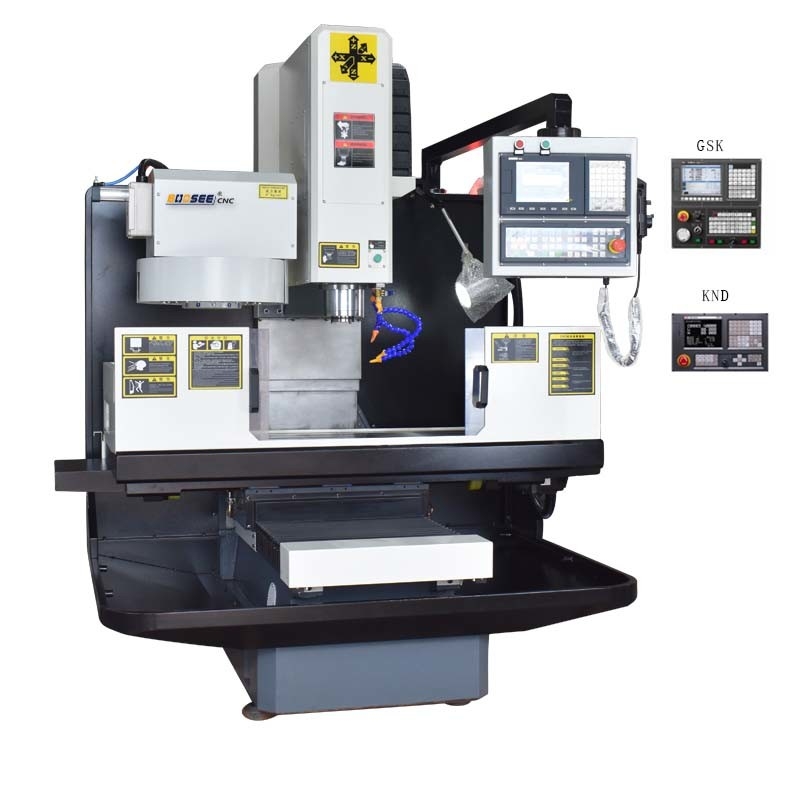

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm
large.img.alt
Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

Large Image :  Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-1250GM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 Set/Month

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm

Description
The Width Of The Triaxial Linear Guide: 35mm The Number Of The Slider In The Y Axis: 4 Pieces
Triaxial Screw Size: 40/12mm Positioning Accuracy: 0.01mm
Feed Motor Connection Form: Direct Connection Tool Changer: Carousel Tool Changer
High Light:

CNC Vertical Milling Centre Machine

,

Precision Vertical Milling Centre Machine

Precision CNC Machining Center Long Work Table 1800x420mm Vertical Milling Center Machine

Product Features:



1. Automatic intermittent lubrication.

2. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC

3. Large travel: larger travels in all three directions than those of the same specifications in the market.

4. The long span Y type column design leads high rigidity and high stability.

5. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.



Product Specification:



Model No. CNC-1250GM
X axis travel 1200mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1800x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent

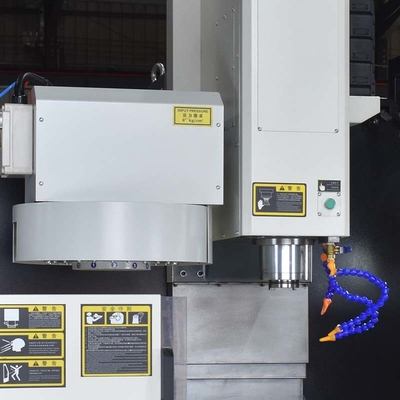

Tool Changer Carousel tool changer
Tool Capacity 12/24pieces
Dimension of machine tool 2250*1700*2300mm
Weight of machine 2450KG





Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm 0





Company Information:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm 1

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm 2





Workpiece Sample:

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm 3





Our Exhibition:

Precision CNC Vertical Milling Centre Machine Long Work Table 1800x420mm 4





FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?

1 set .

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
