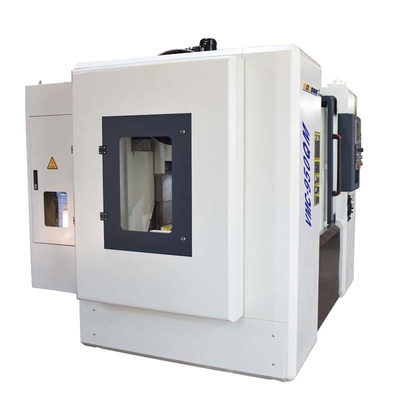

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm
large.img.alt
900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm

Large Image :  900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm

Description
The Number Of The Slider In The Z Axis: 4 Pieces The Maximum Load Capacity: 400KG
Positioning Accuracy: 0.01mm Feed Motor Connection Form: Direct Connection
The Spindle Of Output Power: 5.5/7.5KW Tool Capacity: 12-24pieces
High Light:

900mm VMC Milling Machine

,

1500x420mm VMC Milling Machine

,

900mm CNC VMC Machine

900mm X axis travel VMC Milling Machine Long Work Table 1500x420mm cNC vertical milling machine



Product Description:

CNC machines are making parts around the world for almost every industry. It can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling, drilling, tapping, boring, etc.





Product Specification:

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 0

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 1





Product Features:

1. Leveling blocks & bolts.

2. The long span Y type column design leads high rigidity and high stability.

3. X, Y, Z three-axis have large travel.

4. Structure: Spindle with ball screw pre-tensioned to ensure long service life and steady accuracy.

5. 3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 2

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 3





Workpiece Sample:

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 4





Our Exhibition:

900mm X Axis Travel CNC VMC Milling Machine Vertical Long Work Table 1500x420mm 5





FAQ:
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
