Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm
large.img.alt
Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm

Large Image :  Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm

Description
The Maximum Load Capacity: 400KG Repeat Positioning Accuracy: 0.008mm
Y Rapid Feed: 36m/min Distance From Spindle Nose To The Work Table: 120-620mm
The Spindle Of Output Power: 5.5KW Weight Of Machine: 2250KG
High Light:

Fully Automatic High Precision CNC Machine

,

3 Axis High Precision CNC Machine

Fully Automatic Precision CNC Machining Center 3 Axis Vertical Machining Center 1500x420mm



Product Description:

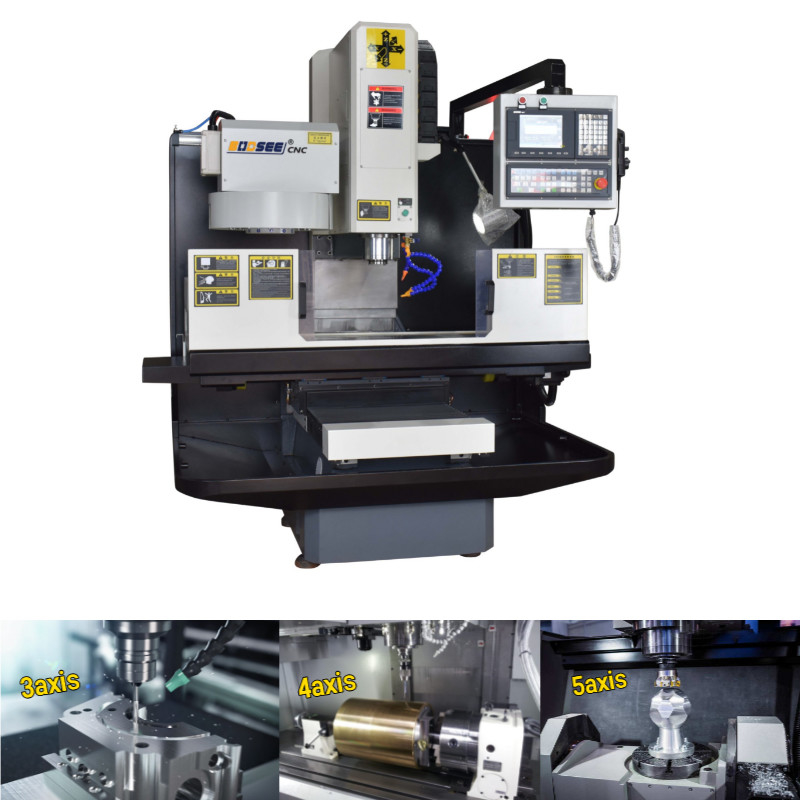

CNC-950GM CNC Vertical Machining Centeis suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.





1. Automatic intermittent lubrication.

2. It adopts special casting process to improve the mechanical properties of materials.

3. It can install 4th axis and install 5th axis.

4. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process.







Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent

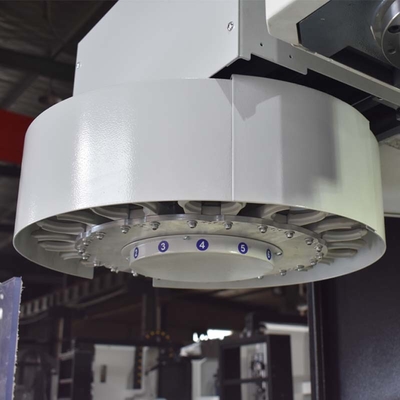

Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG





Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm 1

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm 2





Workpiece Samples:

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm 3







Our Exhibition:

Fully Automatic 3 Axis High Precision CNC Machine Vertical 1500x420mm 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What is your lead time?

It depends on customers’ requirement and quantity.

5.OEM Service

We accept purchase orders with customers' brand or trade mark.
