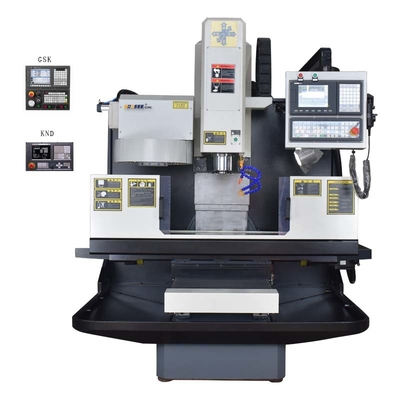

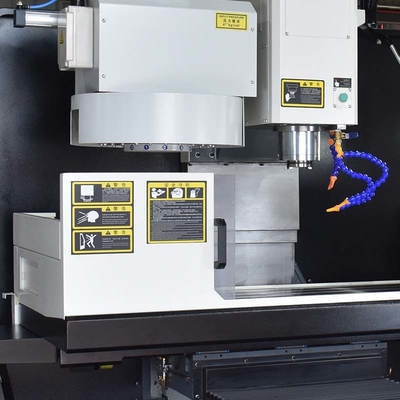

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW
8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW

Large Image :  8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW

Description
Y Axis Travel: 500mm Z Rapid Feed: 24m/min
The Number Of The Slider In The Y Axis: 4 Pieces The Number Of Grooves: 4pieces
Feed Axis Motor Power: 1.8/1.8/2.5KW Distance From Spindle Center To Column Guideway: 580mm
High Light:

8000r/Min Vertical CNC Machining Center

,

2.5KW Vertical CNC Machining Center

,

CNC Three Axis Milling Machine

Three Axis Vertical CNC Milling Machine 8000r/Min Vertical CNC Machining Center



Product Description:

CNC-950GM Vertical Machining Center machine are making parts around the world for almost every industry.



1. Standard configurations

2. High-speed/high precision

3. The machine tool not only has the characteristics of high speed and high precision, but also has the characteristics of heavy cutting, excellent rigidity and excellent production efficiency.

4. High efficiency.



Product Specification:

Model No. CNC-950GM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5KW
Cooling box form Independent
Tool Changer Carousel tool changer
Tool Capacity 12pieces
Dimension of machine tool 1950/1700/2300mm
Weight of machine 2250KG

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 0





Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 1

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 2



Workpiece Samples:

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 3







Our Exhibition:

8000r/Min Vertical CNC Machining Center Three Axis Milling Machine 1.8KW / 2.5KW 4





FAQ:

1. Are you a manufacturer or a trader?

we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us?
Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. OEM Service

We accept purchase orders with customers' brand or trade mark.

6. What is your lead time?

It depends on customers’ requirement and quantity.
