Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-940GM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal

Description
Y Axis Travel: 380mm Distance From Spindle Nose To The Work Table: 120mm
X/Y Axis Feed Motor Rated Output Torque: 7.7-8.4Nm The Width Of The Triaxial Linear Guide: 35mm
The Number Of The Slider In The Z Axis: 4 Pieces Work Table Size: 1500x420mm
High Light:

950mm Vertical CNC Machining Center

,

8.4Nm Vertical CNC Machining Center

,

950mm CNC Machine For Metal

950mm X Axis Travel Vertical CNC Machining Center Cnc Machine Center For Metal



Product Description:

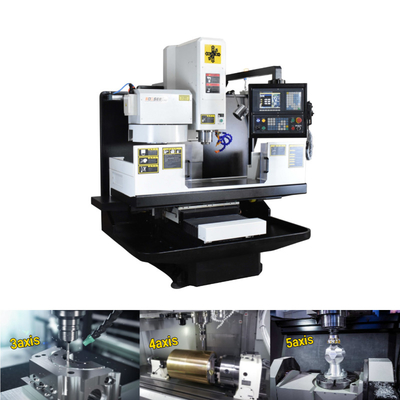

CNC-940GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system, it is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring,etc.



Production Specification:



Model No. CNC-940GM
X axis travel 950mm
Y axis travel 380mm
Z axis travel 450mm
Distance from spindle nose to the work table 120mm
Distance from spindle center to column guideway 460mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
X/Y axis feed motor rated power 1.6/2.0kw
X/Y axis feed motor rated output torque 7.7-8.4Nm
Z axis feed motor rated power 2.6kw
Z axis feed motor rated output torque 10Nm
Cutting rapid feed 0-8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves 4pieces
Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Main servo motor rated power 3.7kw
Main servo motor 30 minute locked-rotor power 5.5kw
Main servo motor rated output torque 24Nm
Spindle sssembly dynamic balance mode G1
Feed motor connection form Direct connection
Taper of spindle hole BT40

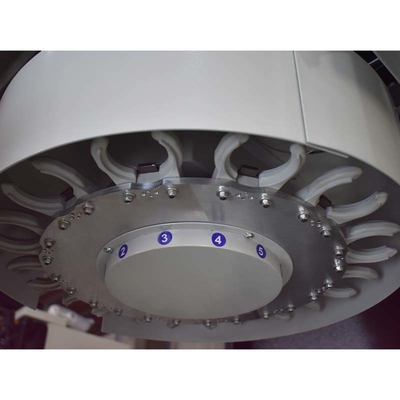

Tool changer Carousel tool changer
Tool Capacity 12piece
Max tool diameter (Full) Ф75mm
Max tool weight 7kg
Max tool length 300mm
Cutting Tool Selection Mode Forward and reverse arbitrary tool selection
Machine tool electric gross capacity 10KVA
Power requirements Customized
Dimension of machine tool 1950x1600x2000 mm
Weight of machine 1950KG
Machine protection shield Half Cover/Semi enclosed





950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal 0





Product Features:

1. High precision, good surface finishing

2. High rigidity material, high strength and good wear resistance

3. Standard automatic lubrication system to extend the service life of the guide rail

4. Large travel: larger travels in all three directions than those of the same specifications in the market.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal 1

950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal 2





Workpiece Sample:

950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal 3



950mm X Axis Travel Vertical CNC Machining Center 7.7Nm - 8.4Nm For Metal 4





FAQ:
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3.Where is our factory located? How can I visit there?

Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.

4. What's your main products of your company?

We specialized in CNC Milling Machine ,Vertical Machining Center.

5. What's the MOQ?

1 set .



Thank you for your precious time!
