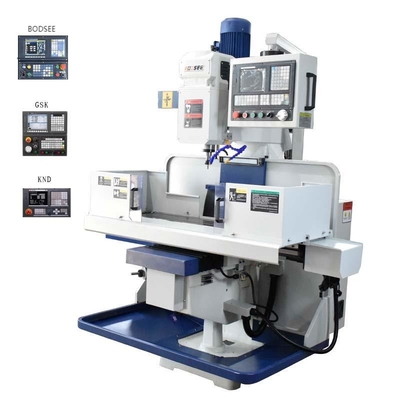

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
China ASLT(Zhangzhou) Machinery Technology Co., Ltd. certification
I'm Online Chat Now

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed
Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Large Image :  Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed

Description
Item: CNC-M4S Vertical Machining Center Spindle Diameter: Φ85.725mm
The Maximum Load Capacity: 350KG Cutting Rapid Feed: 1~4000mm/min
Triaxial Screw Size Z: 2505 Z Axis Travel: 360+120 Mm
High Light:

4000mm/Min 3 Axis CNC Milling Machine

,

X Y Z 3 Axis CNC Milling Machine

,

Vertical X Y Z Axis Milling Machine

3 Axis CNC Milling Machine CNC Vertical Machining Center With X Y And Z Three Axis



Product Features:

1. Made of high-density, high rigidity material, high strength and good wear resistance

2. High speed, high precision, good surface finishing

3. High strength and good wear resistance

4. X, Y, Z three-axis have large travel, especially suitable for the parts machining.



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 0





Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 1

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 2



Product Description:

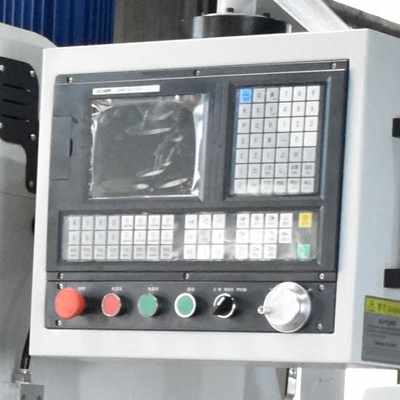

CNC VMC is composed of mechanical equipment and numerical control system., it is an automated machine that is suitable for mechanical processing and mold making. It can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.



Workpiece Samples:

Vertical X Y Z 3 Axis CNC Milling Machine 1 ~ 4000mm/Min Cutting Rapid Feed 3



FAQ:

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.



What's your main products of your company?

A: We specialized in CNC Milling Machine, VMC Machine.



Where is our factory located? How can I visit there?

A: Our factory is located in Zhangzhou City, Fujian Province, China. You are warmly welcomed to visit us.



What's the MOQ?

A: 1 set.



What is your lead time?

A: It depends on customers’ requirement and quantity.
