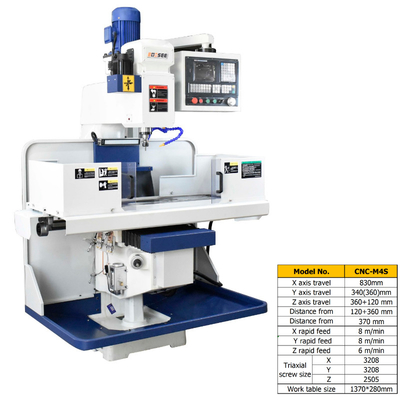

R8 Spindle X Y Z Axis CNC Machine

R8 Spindle X Y Z Axis CNC Machine
R8 Spindle X Y Z Axis CNC Machine
R8 Spindle X Y Z Axis CNC Machine R8 Spindle X Y Z Axis CNC Machine R8 Spindle X Y Z Axis CNC Machine

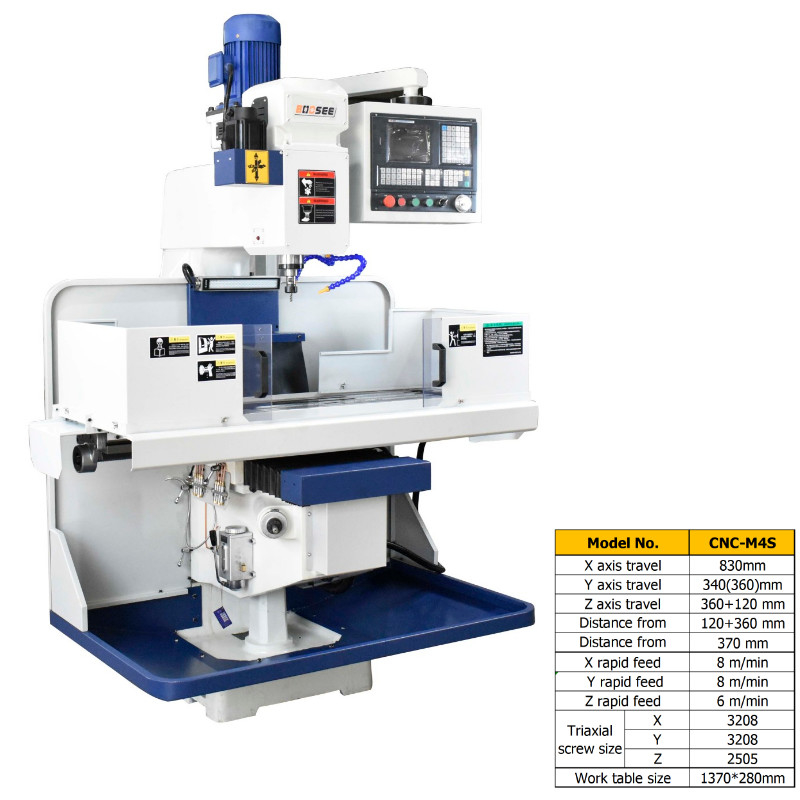

Large Image :  R8 Spindle X Y Z Axis CNC Machine

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

R8 Spindle X Y Z Axis CNC Machine

Description
Cooling Box Form: Integrated The Number Of Grooves: 3pieces
Spindle Motor Power(kW): 3kw Electric Capacity: 7KVA
Cooling Motor: 0.15kw Dimension Of Machine Tool: 1500x1820x2380 Mm
The Maximum Load Capacity: 350KG Distance From Spindle Nose To The Work Table: 120+360 Mm
High Light:

R8 Spindle X Y Z Axis CNC Machine

,

Precision X Y Z Axis CNC Machine

,

R8 Spindle 3 Axis VMC Machine

R8 Spindle X Y Z 3 Axis CNC VMC Machine 350KG Max Load



Product Features:

1. High speed, high precision, good surface finishing

2. Made of high-density, high rigidity material, high strength and good wear resistance

3. 3 axis

4. Precision casting, precision machining, precision assembly



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg



R8 Spindle X Y Z Axis CNC Machine 0





Product description:

Vertical machining center is mainly used for plate, shell parts, mold and other high precision, working procedure, shape more complex parts.

It can also finish many working procedures like milling, drilling, tapping, boring, etc.



Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



R8 Spindle X Y Z Axis CNC Machine 1

R8 Spindle X Y Z Axis CNC Machine 2

Workpiece Sample:

R8 Spindle X Y Z Axis CNC Machine 3

R8 Spindle X Y Z Axis CNC Machine 4



FAQ:

1. How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
