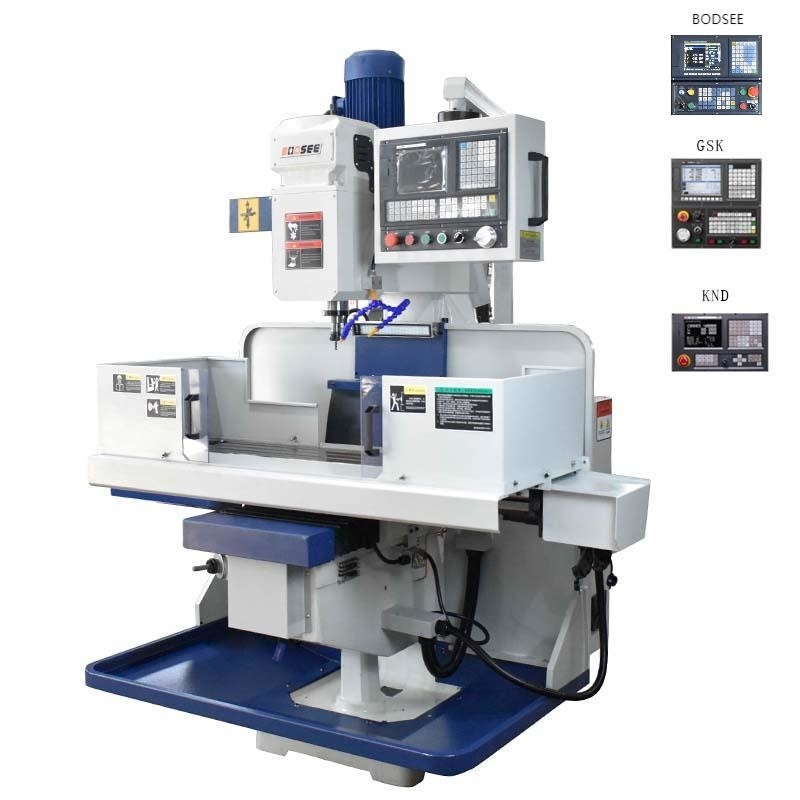

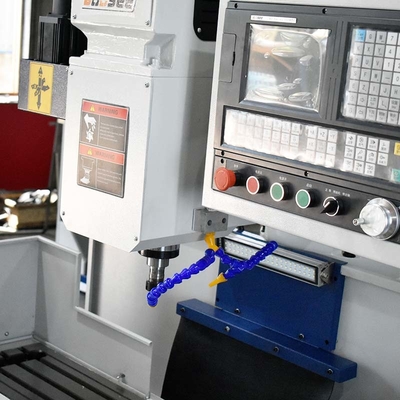

Heavy Cutting 3 Axis CNC Machining Center

Heavy Cutting 3 Axis CNC Machining Center
Heavy Cutting 3 Axis CNC Machining Center Heavy Cutting 3 Axis CNC Machining Center

Large Image :  Heavy Cutting 3 Axis CNC Machining Center

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Heavy Cutting 3 Axis CNC Machining Center

Description
The Maximum Load Capacity: 350KG Positioning Accuracy: 0.025/300mm
Spindle Speed Range: 80-4500r/min Spindle Diameter: Φ85.725mm
Triaxial Feed Motor Torque: 6/6/4Nm Electric Capacity: 7KVA
Dimension Of Machine Tool: 1500x1820x2380 Mm Cutting Rapid Feed: 1~4000mm/min
High Light:

Heavy Cutting 3 Axis CNC Machining Center

,

Metal 3 Axis CNC Machining Center

Heavy Cutting 3 Axis Vertical CNC Machine Cnc Machine Center For Metal



Product Features:

1. High strength resin sand casting

2. Adopt reliable centralized and automatic lubrication device to automatic intermittent lubrication for each lubricating point of the machine tool at fixed time and fixed quantity, and the lubrication time can be adjusted according to the working conditions.

3. X. Y and Z guide rails are heavy duty pathway with high rigidity and low noise. They cooperate with automatic lubricative system to improve the precision life of machine tools;

4. Adopt the Taiwan spindle with high precision and rigidity, with high radial and axial load capacity, and the maximum speed can reach 4500rpm.



Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg





Heavy Cutting 3 Axis CNC Machining Center 0





Product description:

CNC VMC is composed of mechanical equipment and numerical control system. This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.



Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel



Heavy Cutting 3 Axis CNC Machining Center 1

Heavy Cutting 3 Axis CNC Machining Center 2





Workpiece Sample:

Heavy Cutting 3 Axis CNC Machining Center 3







FAQ:

1. How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.



Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
