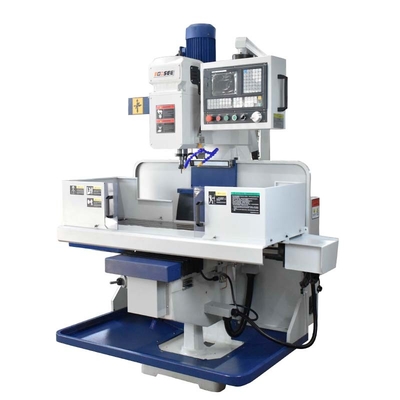

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable

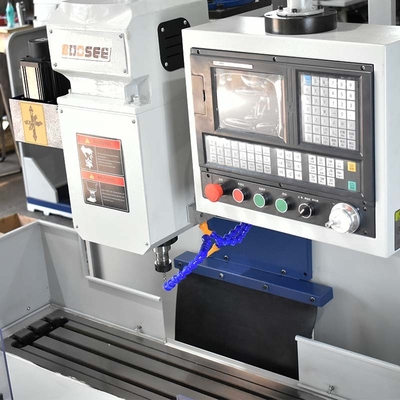

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable
Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable
Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable

Large Image :  Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable

Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-M4S
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable

Description
X Rapid Feed: 8 M/min Y Rapid Feed: 8 M/min
Z Rapid Feed: 6 M/min Work Table Size: 1370*280mm
Cutting Rapid Feed: 1~4000mm/min Positioning Accuracy: 0.025/300mm
Repeat Positioning Accuracy: 0.015mm
High Light:

CNC Vertical Machining Center Working

,

R8 Spindle Vertical Machining Center Working

R8(NT30) Spindle 1370*280mm Worktable Size Vertical CNC Machining Center For Metal



Product Features:

CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing.





Product Specification:



Model No. CNC-M4S
X axis travel 830mm
Y axis travel 340(360)mm
Z axis travel 360+120 mm
Distance from spindle nose to the work table 120+360mm
Distance from spindle center to column guideway 370mm
X rapid feed 8 m/min
Y rapid feed 8 m/min
Z rapid feed 6 m/min
Cutting rapid feed 1~4000mm/min
Triaxial screw size X 3208
Y 3208
Z 2505
Work table size 1370*280mm
The maximum load capacity 350KG
Table "T" type groove The number of grooves 3pieces
Width 16.5mm
Spacing 63.5mm
Positioning accuracy 0.025/300mm
Repeat positioning accuracy 0.015mm
Spindle speed range 80-4500r/min
Spindle Motor Power(kW) 3kw
Spindle Diameter Φ85.725mm
Cooling Motor 0.15kw
Triaxial Feed Motor Torque 6/6/4Nm
Taper of spindle hole R8(NT30)
Power Form (Voltage) Customized
Electric Capacity 7KVA
Water tank capacity 40L
Cooling box form Integrated
Dimension of machine tool 1500/1820/2380mm
Weight of machine 1700kg





Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable 0



Product description:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.



Our company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable 1

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable 2



Workpiece Sample:

Metal CNC Vertical Machining Center Working R8(NT30) Spindle 1370*280mm Worktable 3







FAQ:

1.

How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

2. What's your main products of your company?

We specialized in cnc vertical machine, VMC milling machine.
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access. You are warmly welcomed to visit us.
4. What's the MOQ?
MOQ is 1 set.

5. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not. 5.
