Product Details:
Place of Origin: China
Brand Name: Bodsee
Model Number: CNC-950QM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Wooden Package
Delivery Time: Negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30set/month

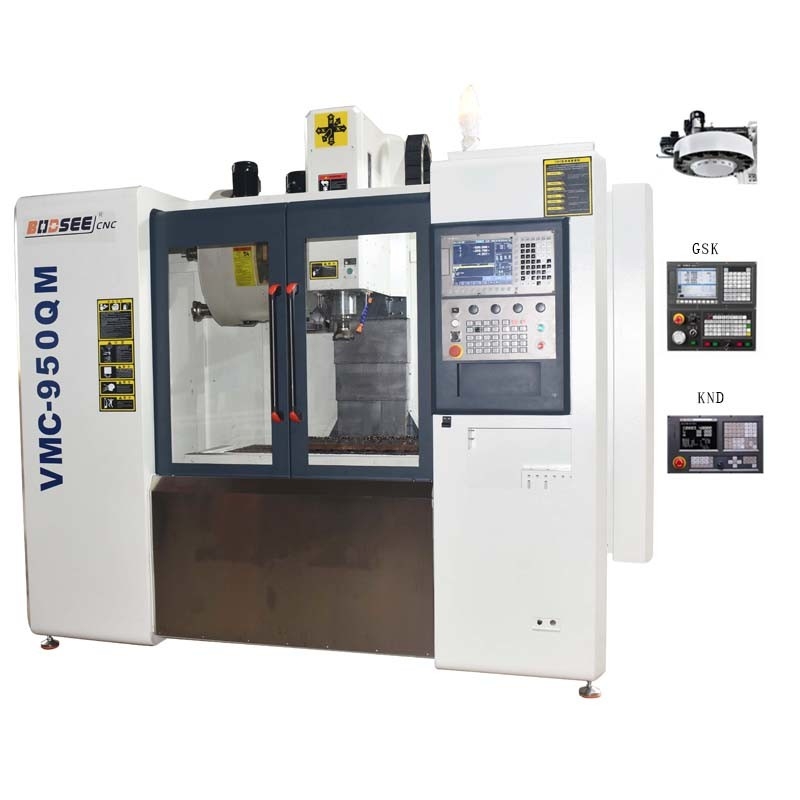

Precision VMC Machining Center

Feed Axis Motor Power: 1.8/1.8/2.5KW The Maximum Load Capacity: 400KG
Positioning Accuracy: 0.01mm Taper Of Spindle Hole: BT40
X Rapid Feed: 36m/min Y Rapid Feed: 36m/min
Z Rapid Feed: 24m/min The Width Of The Triaxial Linear Guide: 35mm
High Light:

Precision VMC Machining Center


BT40 VMC Machining Center

900mm X Axis 400KG max Load Precision CNC Machining Center VMC Machine


Product Description:

CNC VMC is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.



Product Specification:

Model No. CNC-950QM
X axis travel 900mm
Y axis travel 500mm
Z axis travel 500mm
Distance from spindle nose to the work table 120-620mm
Distance from spindle center to column guideway 580mm
X rapid feed 36m/min
Y rapid feed 36m/min
Z rapid feed 24m/min
Cutting rapid feed 8000mm/min
The width of the triaxial linear guide 35mm
The number of the slider in the X axis 6 pieces
The number of the slider in the Y axis 4 pieces
The number of the slider in the Z axis 4 pieces
Triaxial screw size 40/12mm
Work table size 1500x420mm
The maximum load capacity 400KG
Table "T" type groove The number of grooves


Width 18mm
Spacing 90mm
Positioning accuracy 0.01mm
Repeat positioning accuracy 0.008mm
Spindle speed range 20-8000rpm/min
Feed axis motor power 1.8/1.8/2.5KW
Feed motor connection form Direct Connection
Taper of spindle hole BT40
The spindle of output power 5.5/7.5KW
Cooling box form Independent
Tool Changer Carousel tool changer /
Side-mount tool changer
Tool Capacity 12-24pieces
Dimension of machine tool 2800*2200*2300mm
Weight of machine 3150KG


Precision VMC Machining Center 0



Product Features:

1. High strength resin sand casting

2. BT40 spindle

3. 3 axis

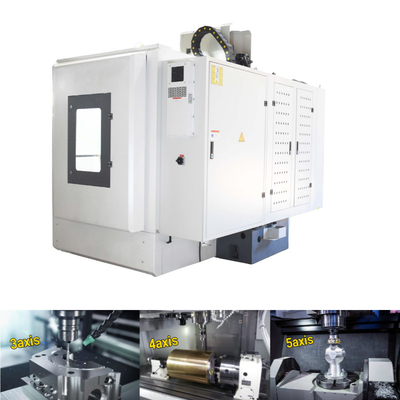

4. It can install 4th axis and install 5th axis

5. CNC controller system: You can choose the CNC system brand: KND, GSK, SYNTEC, SIEMENS, FANUC

X, Y, Z three-axis have large travel, especially suitable for the parts machining.



Our Company:

ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.


Precision VMC Machining Center 1

Precision VMC Machining Center 2


Workpiece Sample:

Precision VMC Machining Center 3





1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3. What's your main products of your company?
We specialized in cnc vertical machine, VMC milling machine.
Is your company a factory or trading company ?

We are factory and located in Zhangzhou City, Fujian Province, China.

5. What's the MOQ?

1 set .

6. What is your delivery time ?

The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
